Data sheet
Hydraulic reducer G 3/8"(male thread)-G 1/4"(Female thread), Zinc plated steel, Elastomer seal
{{ $t('shop.all.artikelnummer') }}:
RI 3/8 X 1/4 ED

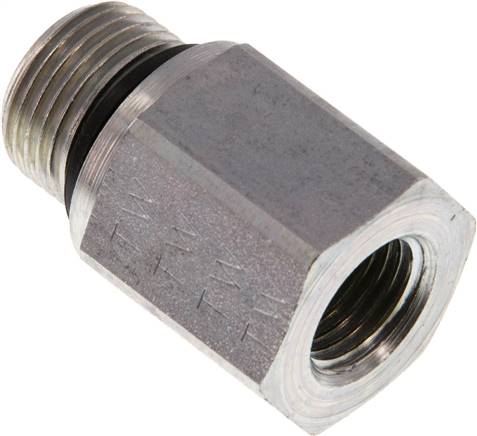

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel, Elastomer seal |
| Thread external | G 3/8" |
| Thread internal | G 1/4" |
| PN [bar] | 630 |
| Temperature range [°C] | -35 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571580742 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Hydraulic thread reducer with cylindrical male and female thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RI 3/8 X 1/4 ED.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 20.12.2025
