Data sheet

5/2-way hand lever valve, spring return, G 1/8"
Item number:
H 521-06 S
Example illustration
Item description
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Properties
func­tion spring re­turn
Thread G1 (3x) G 1/8"
Thread ex­haust air G2 (2x) G 1/8"
Nom­i­nal width [mm] 3,9
flow [l/min] 500
A [mm] 69,7
B [mm] 27
C [mm] 18
D [mm] 28,2
E [mm] 21,2
F [mm] 14
H [mm] 3,3
J [mm] 19
K [mm] 84
M [mm] 14,2
N [mm] 28
O [mm] 20,2
P [mm] 3
S [mm] 16
T [mm] 28,2
W [mm] 2
Further information:
Weight 125 g / pcs
GTIN 4050571350017
Customs duty number 84812090
RoHS compliant Yes
Manufacturer EMC
Drawing:

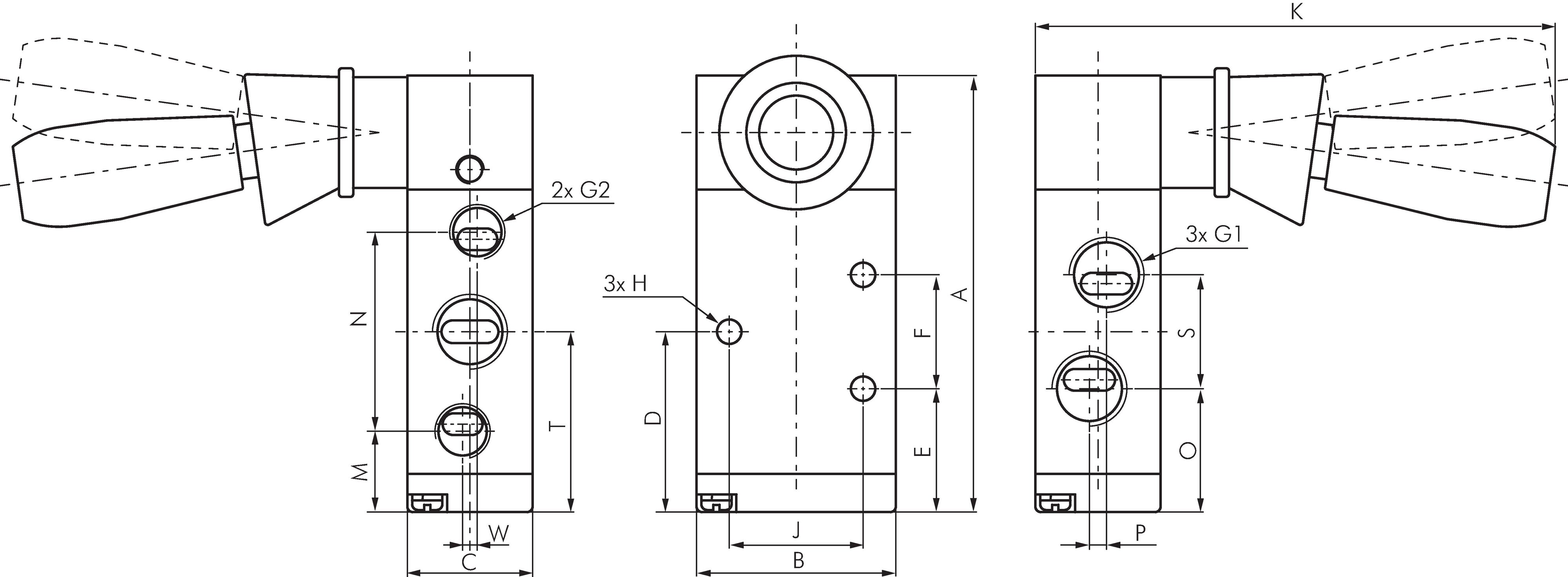

Drawing: 5/2-way hand lever valves
