Data sheet

5/3-way hand lever valve, G 1/8", Centre position ventilated, spring return
Item number:
H 531-06 PS
Example illustration
Item description
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Properties
func­tion Cen­tre po­si­tion ven­ti­lated, spring re­turn
Thread G1 (3x) G 1/8"
Thread ex­haust air G2 (2x) G 1/8"
Nom­i­nal width [mm] 3,4
flow [l/min] 450
A [mm] 84,7
B [mm] 27
C [mm] 18
D [mm] 28,2
E [mm] 21,2
F [mm] 14
H [mm] 3,3
J [mm] 19
K [mm] 93
M [mm] 14,2
N [mm] 28
O [mm] 20,2
P [mm] 3
S [mm] 16
T [mm] 28,2
U M 22x1,5
V [mm] 5
W [mm] 2
X [mm] 4
Further information:
Weight 180 g / pcs
GTIN 4050571350116
Customs duty number 84812090
RoHS compliant Yes
Manufacturer EMC
Drawing:

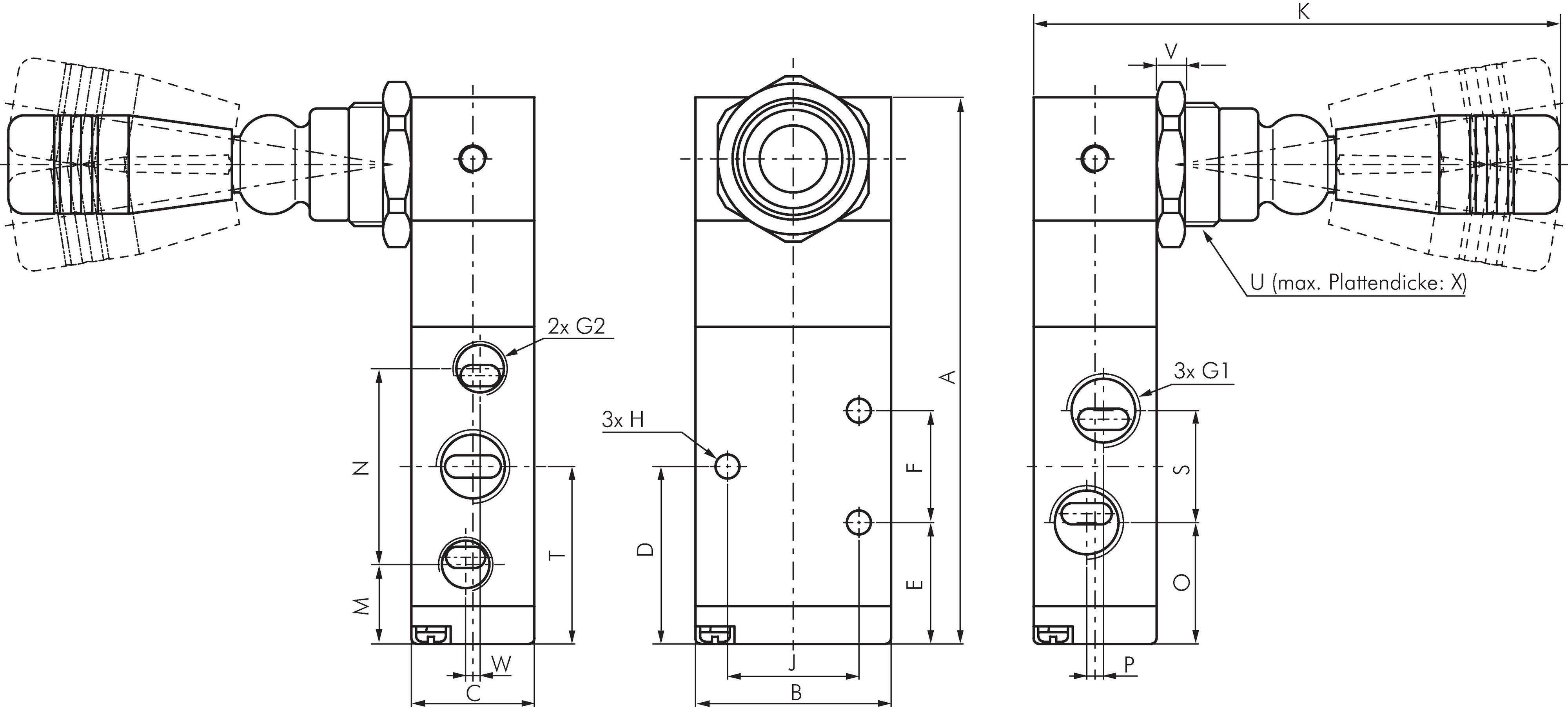

Drawing: 5/3-way hand lever valve
