Data sheet

5/3-way pneumatic valve, G 1/8", Centre position vented
Item number:
RV 5312-06E A
Example illustration
Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Control pressure:
2 to 8 bar
Media:
oiled and unoiled filtered compressed air
Service life:
min. 40 million switching cycles
Properties
Switch­ing 5/3-way
func­tion Cen­tre po­si­tion vented
Thread G1 (3x) G 1/8"
Thread ex­haust air G2 (2x) G 1/8"
Thread con­trol con­nec­tion G3 2x G 1/8"
Nom­i­nal width [mm] 3,4
flow [l/min] 450
A [mm] 96
B [mm] 27
C [mm] 18
D [mm] 9,5
E [mm] 33,5
F [mm] 14
H1 [mm] 3,3
H2 [mm] 3,3
J [mm] 13
K [mm] 25,5
L [mm] 30
M [mm] 26,5
N [mm] 28
O [mm] 32,5
P [mm] 3
S [mm] 16
T [mm] 40,5
W [mm] 2
Further information:
Weight 115 g / pcs
GTIN 4050571716219
Customs duty number 84812090
RoHS compliant Yes
Manufacturer EMC
Drawing:

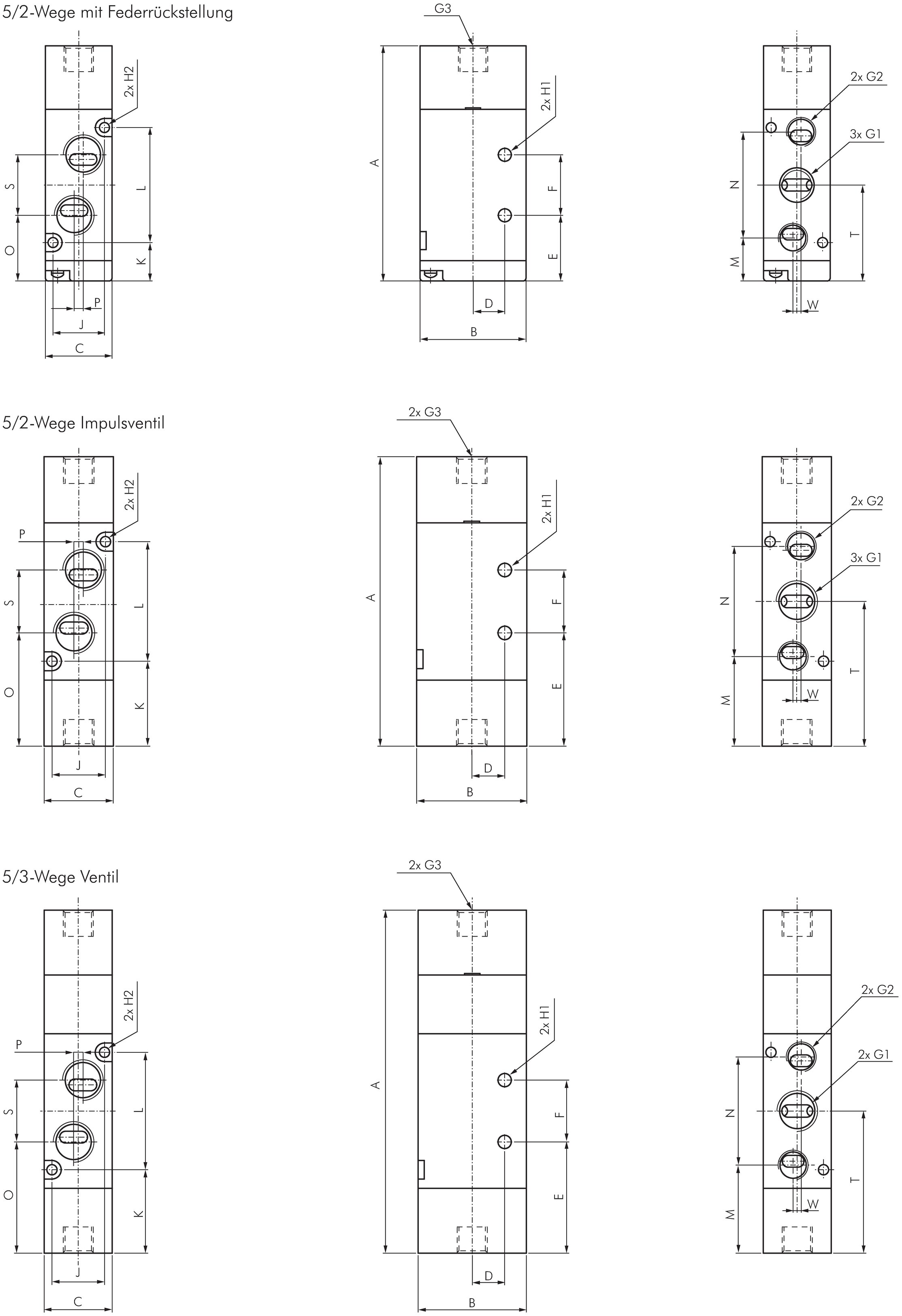

Drawing: 5/2-way and 5/3-way pneumatic valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RV 5312-06E A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 15.05.2025
