Data sheet
Thermowell to screw-in (G 1/2"), 63mm, Cu alloy
Item number:
TR 63 BUND CU
Example illustration
Item description
Used for:
Dip shaft Ø 8 mm, 18 mm collar
Properties
| Material | Cu alloy |
| Version | to screw-in (G 1/2") |
| PN [bar] | max. 6 |
| Suitable for stem lengths [mm] | 63 |
| L [mm] | 63 |
Further information:
| Weight | 90 g / pcs |
| GTIN | 4050571701994 |
| Customs duty number | 90259000 |
| RoHS compliant | Yes |
| Manufacturer | WIKA (WEEE DE92770372) |

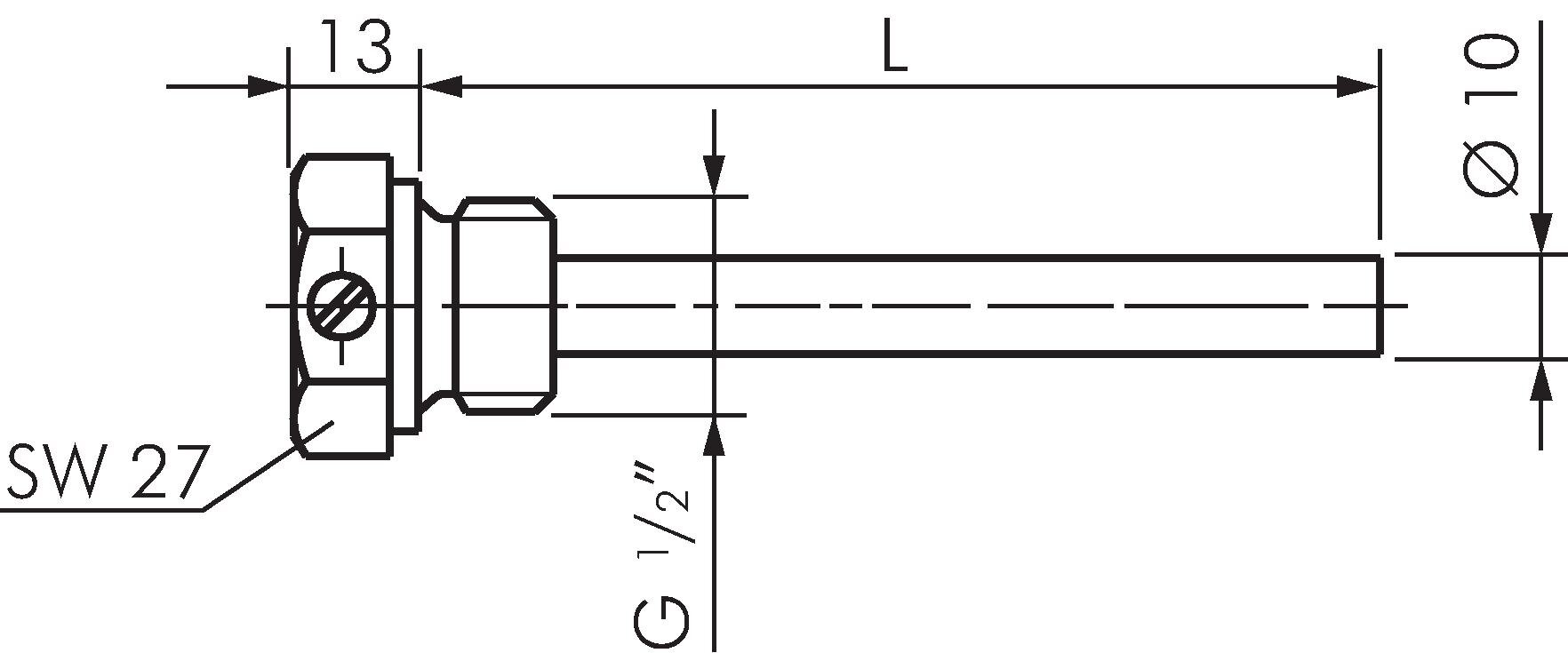

Drawing:
Drawing: Thermowell with clamping screw for bimetal thermometer, for screwing in
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number TR 63 BUND CU.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 15.05.2025
