Podatkovni list
Coupling socket (SM) with hose screw connection, POM
{{ $t('shop.all.artikelnummer') }}:
KDS 3,2 SM POM

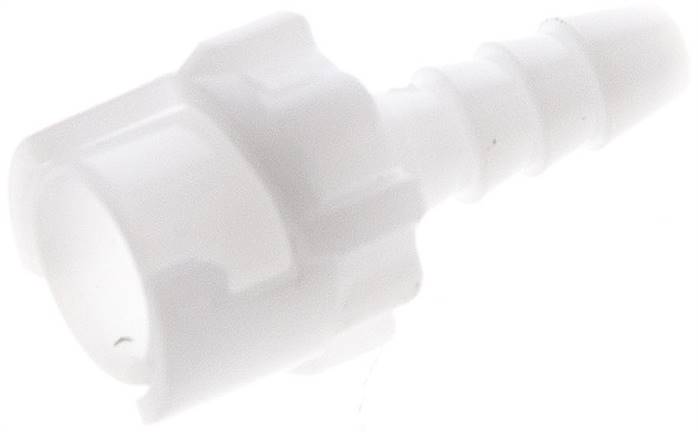

Vzorčni prikaz
{{ $t('shop.display.artikel.beschreibung_headline') }}
Plug diameter:
6,1 mm
Flow air (water)*:
40 - 200 l/min (0,3 - 2,6 l/min)
Operating pressure:
-0,8 do 7 bar
Function:
Coupled by screwing the plug into the sleeve until you hear a “click”. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled. Ideally used for luer connectors in the medical technology field. When coupled, the hose screw connections inside the bayonet connectors can be rotated freely and thus prevent the hose from becoming bent or twisted.
Type POM:
Materials:
Body and valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass
Temperature range:
-40°C to max. +80°C
Media:
Compressed air, water, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide, mild chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol
Operating range:
For general applications. High resistance to mineral oils.
Polypropylene type:
Materials:
Body and valves: polypropylene (raw material in accordance with FDA), valve springs: stainless steel AISI 316, seals: EPDM, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass
Temperature range:
0°C to max. +80°C
Media:
Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Operating range:
Suited for use with many chemicals. Not resistant to mineral oils.
Compatible with****:
CPC Colder SMC, LinkTech series 10
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | POM |
| Izvedba | brez zapornega ventila |
| Premer mehke cevi (znotraj) | 3,2 (1/8") |
| Temperaturno območje | od -40 do +80 |
Dodatne informacije:
| {{ $t('shop.all.gewicht') }} | 1 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571399467 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | LinkTech |
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.com pod številko artikla KDS 3,2 SM POM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 21.12.2025
