Data sheet
VACS-C-C1-5 (8025331) Solenoid coil
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO059829

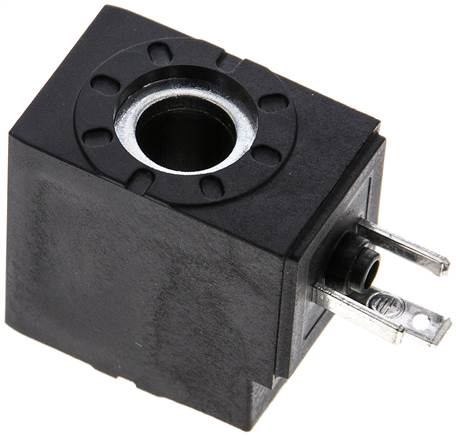

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| installation position | arbitrary |
| Power-on time | 100 % |
| Coil characteristic value | 12 V DC: 2,6 W |
| Permitted voltage oscillations | ± 10 % |
| Permission | c UL us - Recognized (OL) |
| Protection category | IP65 |
| ambient temperature [°C] | -10 to 50 |
| Electrical connection |
Wiring diagram Form C acc. to EN 175301-803, acc. to EN 175301-803 |
| Fastening type | With Knurled nut |
| Material information | RoHs compliant |
| Housing material |
PA, Steel |
| Winding material | Copper |
| Solenoid material |
Copper, Steel, Thermoplast |
| Insulation material class | H |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
Further information:
| {{ $t('shop.all.gewicht') }} | 36 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568279103 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85059029 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number OT-FESTO059829.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 20.12.2025
