HGPL-63-100-A-B (3361493) Parallel gripper
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO061697

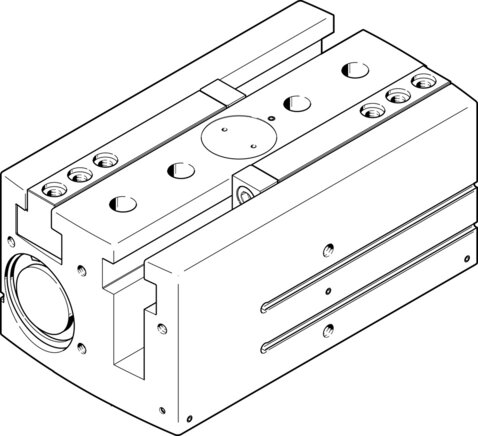

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
size 63
Stroke per gripper jaw [mm] 100
Max. exchange precision [mm] < 0,2 mm
Max. angular gripper jaw backlash ax, ay [deg] < 0.2 deg
Max. gripper jaw play Sz [mm] < 0,05 mm
Rotational symmetry [mm] <= 0,2 mm
Repeatability grippers [mm] < 0,03 mm
Quantity Gripper jaws 2
installation position arbitrary
Principle of operation double acting
Gripper function Parallel
Construction set up Double piston,
Guide,
Piston pusher,
T-shape,
Toothed rack/pinion
Position detection For proximity switch
Open total gripping force at 6 bar [N] 2.466
Close total gripping force at 6 bar [N] 2.742
Operating pressure [bar] 3 to 8
Max. working frequency gripper [Hz] < 1 Hz
Min. opening time a 6 bar [ms] 650
Min. opening time at 0.6 MPa (6 bar, 87 psi) [ms] 600
Min. closing time at 0.6 MPa (6 bar, 87 psi) Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
Information about operating and control medium [°C] 5 to 60
Open gripper jaws at gripping force of 6 bar [N] 1.233
LABS (PWIS) conformity [N] 1.371
Mass inertia [kg/cm²] 1.018,17
Total gripping force, opening, 0.6MPa (6bar, 87 psi) [N] 9.000
Total gripping force, closing, 0.6MPa (6bar, 87 psi) [Nm] 300
Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi) [Nm] 200
Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) [Nm] 250
Lubrication interval guide elements [Mio SP] 5
Max. mass per external griper finger [g] 940
Fastening type Female thread and centring sleeve,
With Throughway bore and centring sleeve
Pneumatic connection G1/8
Material information Copper and PTFE-free,
RoHs compliant
Housing material aluminium,
Smooth anodised
Gripper jaws material hardened,
Steel
Further information:
{{ $t('shop.all.gewicht') }} 14 kg / pcs
{{ $t('shop.all.gtin') }} 4052568269302
{{ $t('shop.display.artikel.zollwarennummer') }} 84798997
{{ $t('shop.all.hersteller') }} Festo
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number OT-FESTO061697.
