CASB-MT-D3-R7 (8071781) Sensor interface
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO084078

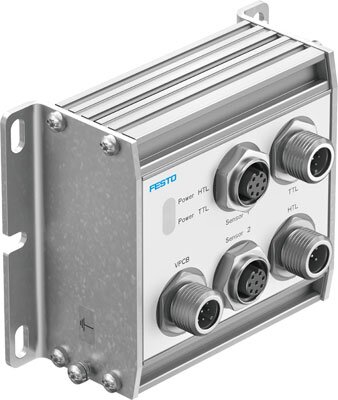

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Diagnose function | Display via LED |
| installation position | arbitrary |
| Nominal operating voltage DC [V] | 24 |
| residual ripple | 5 % |
| Permission | RCM mark |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| UKCA marking (see declaration of conformity) | 1 - low corrosion stress |
| LABS (PWIS) conformity | IP65 |
| ambient temperature [°C] | -5 to 50 |
| Fastening type | mit Durchgangsbohrung für Schraube M4 |
| Housing material | Aluminium wrought alloy, anodised |
| User information | Das Produkt ist ausschließlich für industrielle Zwecke geeignet. In Wohnbereichen müssen eventuell Maßnahmen zur Funkentstörung getroffen werden. |
| Reverse polarity protection | yes |
| Output frequency |
HTL-Signal: max. 450 Hz, TTL-Signal: max. 7200 Hz |
| Operating voltage range DC [V] | 20.4 to 30 |
| Power-on time | 100 % |
| Max. electrical power consumption [W] | 6 |
| Power input for unloaded outputs [mA] | 50 |
| Current carrying capacity per output [mA] | 50 |
| KC-mark | KC-EMV |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Protect against direct and indirect contact | Funktionskleinspannung mit sicherer Trennung (PELV) |
| Information about protection category | In mounted condition |
| Signal range |
HTL-Signal: High: min. 18 V, Low: max. 2 V, TTL-Signal: High: min. 2,4 V, Low: max. 0,4 V |
| Electrical connection: outlet, function | TTL |
| Electrical connection: outlet, connection type | Plug |
| Electrical connection: outlet, connection technology | M12x1 A coded to EN 61076-2-101 |
| Electrical connection: outlet, number of pins / wires | 8 |
| Electrical connection: outlet 2, function | HTL |
| Electrical connection: outlet 2, connection type | Plug |
| Electrical connection: outlet 2, connection technology | M12x1 A coded to EN 61076-2-101 |
| Electrical connection: outlet 2, number of pins / wires | 5 |
| Electrical connection for valve, connection type | Plug |
| Electrical connection for valve, connection technology | M12x1 A coded to EN 61076-2-101 |
| Electrical connection for valve, connection type | 8 |
| Electrical connection for valve, connection technology | 2x socket |
| Electrical connection for valve, number of pins/wires | M12x1 A coded to EN 61076-2-101 |
| Electrical connection sensor, number of pins / wires | 8 |
| Material information | RoHs compliant |
| Seals material |
FKM, NBR |
Further information:
| {{ $t('shop.all.gewicht') }} | 360 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568445874 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85371098 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number OT-FESTO084078.
