Data sheet
Eco-Line manifold, G 1/2", Eco-Line 4A
Item number:
VB EA4004-04

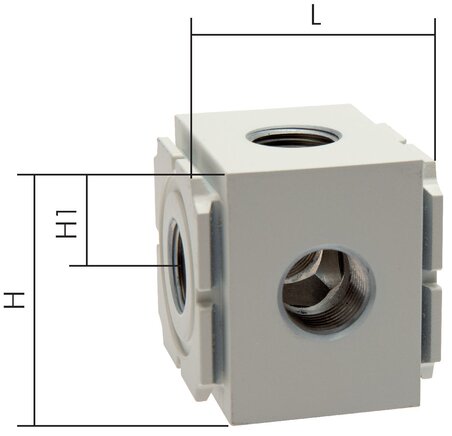

Example illustration
Item description
Materials:
Body: Aluminium
Temperature range:
-5 to +60 °C
Input pressure:
0 to 10 bar
Media:
Compressed air, neutral gases
Scope of delivery:
Manifold block with 4 outlet threads (top, bottom, front, rear) and 3 loosely enclosed sealing plugs
Advantages:
•Easy assembly of individual components from a particular model series using coupling kits
Properties
| Model series | Eco-Line 4A |
| Thread input/output | G 1/2" |
| Thread outlet | 4x G 1/2" |
| L [mm] | 56 |
| H [mm] | 58 |
| H1 [mm] | 29 |
| Coupling kit | KP EA4000 |
Further information:
| Weight | 350 g / pcs |
| GTIN | 4050571930370 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VB EA4004-04.
