Data sheet
VFOE-LE-T-R38-Q10 (8068741) One-way flow control
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO095186

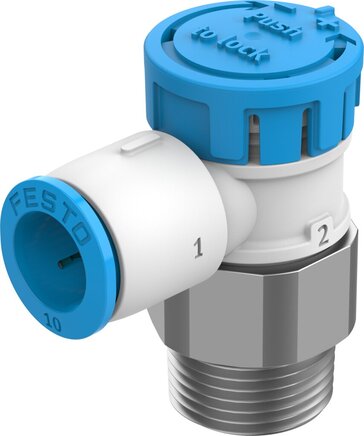

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Valve function | Exhaust air flow control return function |
| Pneumatic connection 1 | QS-10 |
| Pneumatic connection 2 | R3/8 |
| Actuation type | Manually |
| Setting element | Rotary button with stopper |
| Fastening type | Screwable |
| Housing material | PBT |
| installation position | arbitrary |
| Symbol | 991452 |
| Can be rotated | 360 deg/no permanent tilt permitted |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Hinweis zum Betriebs-/Steuermedium | Oiled operation possible (required in further operations) |
| LABS (PWIS) conformity | VDMA24364-Zone III |
| Reinraumtauglichkeit, gemessen nach ISO 14644-14 | Klasse 4 nach ISO 14644-1 |
| Medium temperature [°C] | 60 |
| Werkstoff-Hinweis | RoHs compliant |
| Cover material | PBT |
| Dynamic seals material | HNBR |
| Threaded bolt material | Zinc-plated steel |
| Sleeve material | PBT |
| Material static seals | NBR |
| Product weight [g] | 29. Mai |
| Normal nominal flow in one-way flow control [] | 750 |
| Normal nominal flow in check valve direction [] | 700 bis 1000 |
| ambient temperature [°C] | -10 to 60 |
| Spanner width [mm] | 21 |
| Operating pressure complete temperature range [MPa] | 0,02 bis 1 |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) [] | 1280 |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) [] | 1400 bis 1600 |
Further information:
| {{ $t('shop.all.gewicht') }} | 29. Mai g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568454500 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number OT-FESTO095186.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
