ESNU-16-10-P-A (19263) ISO cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO001041

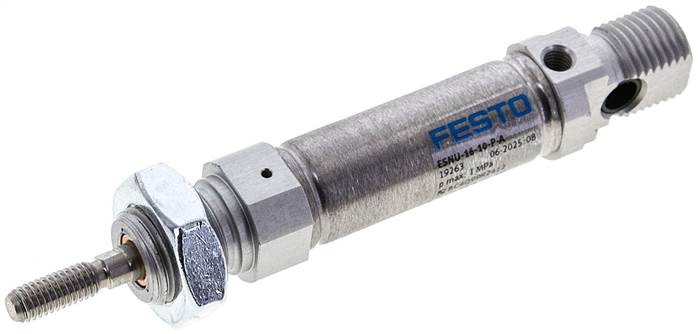

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 10
Piston diameter 16 mm
Piston rod thread M6
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Complies to standard CETOP RP 52 P,
ISO 6432
Piston rod end Male thread
Construction set up Piston,
piston rod,
cylinder tube
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 1.2 to 10
Principle of operation Pressing,
single action
Maritime classification see Certificate
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Information about operating and control medium 2 - moderate corrosion stress
ambient temperature [°C] -20 to 80
LABS (PWIS) conformity [J] 0,15
Theoretical force at 6 bar, flow [N] 106,5
Moving mass at 0 mm stroke [g] 23,0
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke [g] 4,6
Base weight at 0 mm stroke [g] 89,9
Supplement moved mass per 10 mm stroke [g] 2
Fastening type With Accessories
Pneumatic connection M5
Material information RoHs compliant
Cover material Aluminium wrought alloy,
No-colour anodised
Material information NBR,
TPE-U(PU)
Piston rod material High-alloyed stainless steels
Cylinder tube material High-alloyed stainless steels
Further information:
{{ $t('shop.all.gewicht') }} 90 g / pcs
{{ $t('shop.all.gtin') }} 4052568003524
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
