Scheda tecnica
MFH-5-3/8-B (19705) Solenoid valve
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO010613

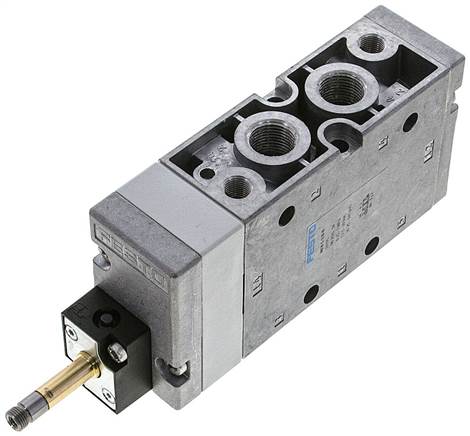

Illustrazione esemplare
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Valve function | 5/2 monostable |
| Actuation type | Electrical |
| Build.width [mm] | 40 |
| Normal nominal flow [l/min] | 2.000 |
| Operating pressure [bar] | 2.5 to 10 |
| Construction set up | Piston pusher |
| Reset mode | Mechanical spring |
| Nominal width [mm] | 12 |
| Pitch dimension [mm] | 41 |
| Exhaust function | Can be throttled |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | tentative |
| Control type | pilot operated |
| Control air supply | Internal |
| Flow direction | Not reversible |
| lap | positive Überdeckung |
| Max. switching frequency [Hz] | 3 |
| Shifting time off [ms] | 56 |
| Shifting time on [ms] | 20 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| Bearing temperature [°C] | -40 to 60 |
| Medium temperature [°C] | -10 to 60 |
| ambient temperature [°C] | -5 to 40 |
| Fastening type |
on PR strip, With throughway bores, Selectively: |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 |
| Pneumatic connection 5 | G3/8 |
| Material information | RoHs compliant |
| Seals material | NBR |
| Housing material | Aluminium die casting |
| Max. positive test impulse at 0 signal [µs] | 2.200 |
| Max. negative test impulse for 1 signal [µs] | 3.700 |
| Exhaust control connection 84 | M5 |
| Electrical connection | Via f-coil, order separately |
Maggiori informazioni:
| {{ $t('shop.all.gewicht') }} | 650 g / Pz. |
| {{ $t('shop.all.gtin') }} | 4052568003616 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figura
Per maggiori informazioni su questo articolo e la possibilità di ordinarlo, ti consigliamo di consultare il nostro negozio online https://www.landefeld.com e il codice articolo OT-FESTO010613 .
