Data sheet
VMPA2-M1H-X-PI (537961) Solenoid valve
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO011744

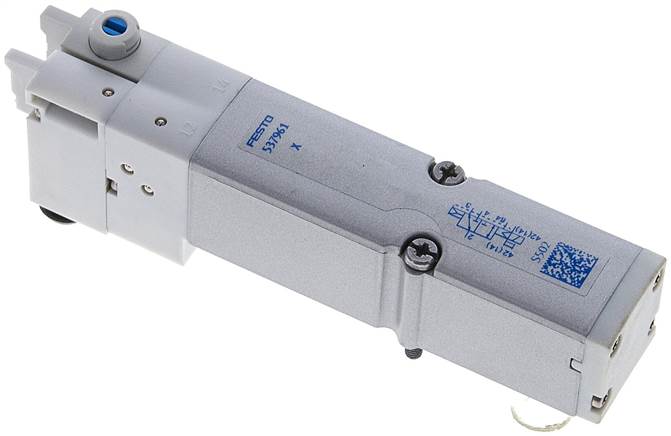

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Valve function | 3/2 closed monostable |
| Actuation type | Electrical |
| Valve size [mm] | 20 |
| Standard nominal flow rate (standardised to DINa1343) [l/min] | 470 |
| Operating pressure [bar] | -0.9 to 10 |
| Construction set up | Piston pusher |
| Reset mode | Pneumatic spring |
| Permission | c UL us - Recognized (OL) |
| Protection category |
IP65, acc. to IEC 60529 |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation |
Ratcheting, tentative |
| Control type | pilot operated |
| Flow direction | Reversible |
| lap | positive Überdeckung |
| Signal condition display | yes |
| lap [bar] | 3 to 8 |
| Vacuum capable | yes |
| Shifting time off [ms] | 22 |
| Shifting time on [ms] | 13 |
| Max. positive test impulse at 0 signal [µs] | 400 |
| Max. negative test impulse for 1 signal [µs] | 900 |
| Permitted voltage oscillations | ± 25 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Information about operating and control medium | 1 - low corrosion stress |
| Bearing temperature [°C] | -20 to 40 |
| Medium temperature [°C] | -5 to 50 |
| Relative humidity | max. 90 % at 40 °C |
| LABS (PWIS) conformity [°C] | -5 to 50 |
| Max. tightening torque Valve fastening [Nm] | 0,65 |
| Fastening type | With throughway bores |
| Material information | RoHs compliant |
| Seals material | NBR |
| Housing material | Aluminium die casting |
| Material information [l/min] | 470 |
| Normal nominal flow with QS 10 [l/min] | 480 |
Further information:
| {{ $t('shop.all.gewicht') }} | 105 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568174866 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
