Data sheet
T-5/3-1/4 (4578) Pushbutton valve
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO013751

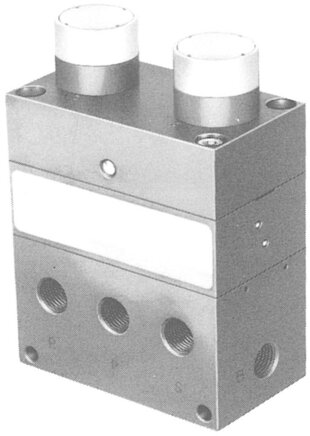

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Valve function | 5/3 closed |
| Standard nominal flow rate (standardised to DINa1343) | Manually |
| Normal nominal flow [l/min] | 680 |
| Operating pressure [bar] | 2 to 10 |
| Nominal width [mm] | 7 |
| LABS (PWIS) conformity | Soft |
| Control type | pilot operated |
| ambient temperature [°C] | -10 to 60 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G1/4 |
| Pneumatic connection 3 | G1/4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,2 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4052568008536 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
