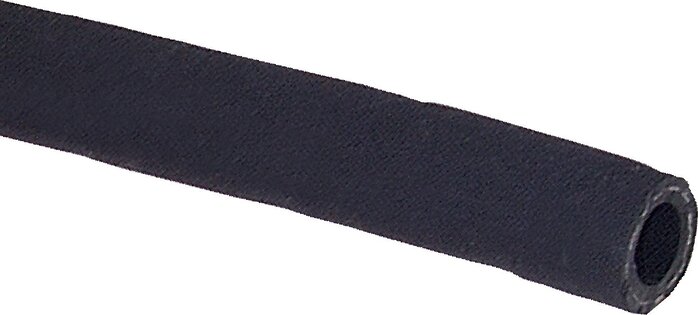

Item group
1 TE - one highly resistant textile mesh, SAE 100 R6 / EN 854
YouTube videos:
Materials:
Inner core: synthetic rubber, outer cover: synthetic rubber, ozone and weather resistant, pressure carrier: one or two textile braids
Media:
Mineral oil-based hydraulic oils, water (max. +70 °C), diesel oils (max. +93 °C), rapeseed oil, water-oil emulsions
Operating range:
Average pressure hydraulic systems
Delivered as:
Due to the manufacturing process, we cannot exclude that the goods are delivered in parts. We try to deliver a maximum of 3 sections smaller than 20 m. and none of the sections is shorter than 3 m.
Advantages:
-•high flexibility,
•small bending radii,
•low weight
•small bending radii,
•low weight
Temperature range:
-40 to +125 °C
Documents:
More information
1 TE - one highly resistant textile mesh, SAE 100 R6 / EN 854:
8 of 8 articles
1 TE 5
1 TE hose, EN 854, DN 5
€8.94
incl. VAT
1 TE 6
1 TE hose, EN 854, DN 6
€14.07
incl. VAT
1 TE 8
1 TE hose, EN 854, DN 8
€16.18
incl. VAT
1 TE 10
1 TE hose, EN 854, DN 10
€17.67
incl. VAT
1 TE 12
1 TE hose, EN 854, DN 12
€20.84
incl. VAT
1 TE 16
1 TE hose, EN 854, DN 16
€31.33
incl. VAT
1 TE 19
1 TE hose, EN 854, DN 19
€32.69
incl. VAT
1 TE 25
1 TE hose, EN 854, DN 25
€34.51
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
