Item group

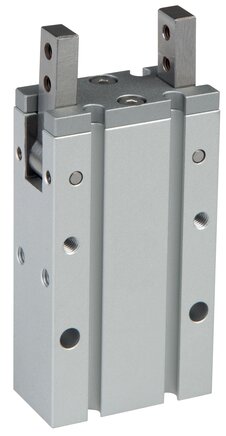

180° angle gripper, SHR
Materials:
Body: anodised aluminium / galvanised steel / stainless steel, piston: aluminium, gripper finger: stainless steel, seals: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 7 bar
Maximum working frequency:
60 cycles / minute
Repeatability:
± 0,2 mm
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•Ideal for pick and place applications,
•180° opening of the gripper simplifies many applications,
•Accurate re-installation thanks to centring hole on the face and fitting hole,
•Many mounting versions possible,
•Main installation dimensions identical to SMC series MHY2
•180° opening of the gripper simplifies many applications,
•Accurate re-installation thanks to centring hole on the face and fitting hole,
•Many mounting versions possible,
•Main installation dimensions identical to SMC series MHY2
*at 5 bar
Documents:
More information
180° angle gripper, SHR:
8 of 8 articles
€187.43
incl. VAT
€208.61
incl. VAT
€239.84
incl. VAT
€286.20
incl. VAT
SHR 10 REP
180° angle gripper, piston 10mm, Repair set
€6.13
incl. VAT
SHR 16 REP
180° angle gripper, piston 16mm, Repair set
€8.39
incl. VAT
SHR 20 REP
180° angle gripper, piston 20mm, Repair set
€8.39
incl. VAT
SHR 25 REP
180° angle gripper, piston 25mm, Repair set
€9.40
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
