2/2-way & 3/2-way banjo bolt solenoid valves with push-in fitting, NW 1.3

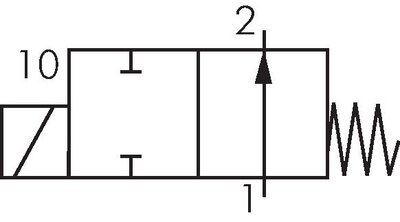

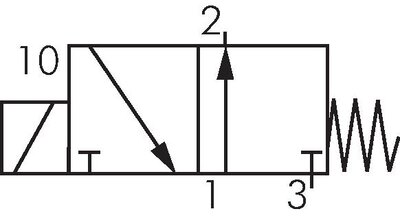

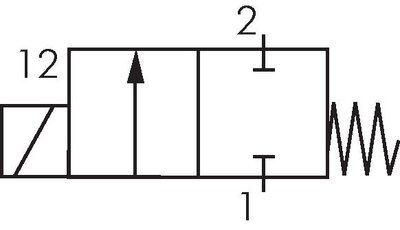

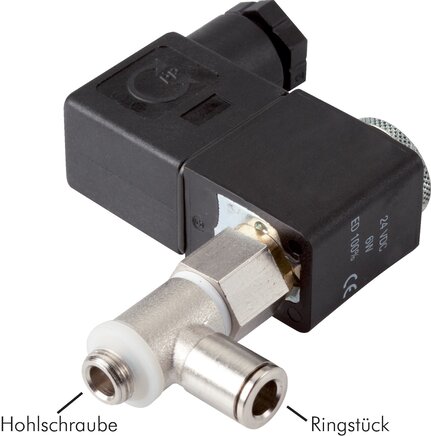

Exemplary representation: Hollow screw valve with plug connection Application examples Schematic symbol: 2/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 2/2-way solenoid valve, open when de-energised (NO) Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO)

Materials:

Banjo bolt and banjo: Nickel-plated brass, internal parts: Brass / stainless steel, seals: FKM/PA/PVC

Temperature range:

-20°C to +50°C

Media:

lubricated and unlubricated, filtered compressed air, neutral gases

Switching time:

< 12 ms

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65

Structural shape solenoid coil:

U (plug size 1)

Operating recommendations:

Solenoid with "pressure input banjo bolt" are suitable for the assembly on a central compressed air supply, to control a consumer via the banjo. Solenoid valves with "pressure input banjo" can be screwed directly into a consumer (e.g. pneumatic cylinder) via the banjo and supplied with compressed air via the banjo. If a pneumatic cylinder should be controlled, then we recommend installing a NO valve (MHZO...) in one connection and an NC valve (MHZ...) in the other connection.

Advantages:

•economical price,
•compact design

Note:

We recommend ordering an SD 50 silencer separately for the 3/2-directional valves, which can be screwed into the anchor hole..

Information:

These valves are always supplied with a solenoid coil and a connector plug.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 786) atlas9_seiten/786.pdf
