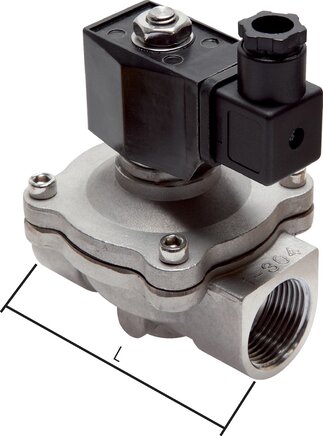

2/2 way solenoid valves made of stainless steel, force pilot operated, Eco-Line

Description

Materials:
Bodies: 1.4306, internal parts: stainless steel, seal: FKM

Temperature range:
-20°C bis +120°C, environment: max. +65°C

Operating pressure:
DC: 0 - 6 bar, AC: 0 - 10 bar

Power consumption:
Direct current (DC): 20 W, G 1-1/4" - G 2": 45 W, alternating current (AC): 24 VA, G 1-1/4" - G2": 36 VA (draw 60 / 90 VA)

Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request

Installation position:
With upright magnets

Voltages:
Standard: 24 V=, 230 V AC, upon request: other voltages

Protection class:
IP 65, plug size 3

Information:
These valves are generally delivered with coils and plugs!

*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge

Find the right item

Voltage
Thread
DN [mm]
L [mm]
kv value* [l/min]
solenoid

2/2 way solenoid valves made of stainless steel, force pilot operated, Eco-Line: 20 of 28 items

2/2-way SS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V=

  • function

    closed (NC) without power

  • Thread

    G 3/8"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC
  • Voltage

    230 V AC

  • function

    closed (NC) without power

  • Thread

    G 3/8"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC
  • Voltage

    12 V=

  • function

    closed (NC) without power

  • Thread

    G 3/8"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V AC

  • function

    closed (NC) without power

  • Thread

    G 3/8"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 1/2", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V=

  • function

    closed (NC) without power

  • Thread

    G 1/2"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 1/2", 0-6/10 (DC/AC) bar, NC
  • Voltage

    230 V AC

  • function

    closed (NC) without power

  • Thread

    G 1/2"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 1/2", 0-6/10 (DC/AC) bar, NC
  • Voltage

    12 V=

  • function

    closed (NC) without power

  • Thread

    G 1/2"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 1/2", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V AC

  • function

    closed (NC) without power

  • Thread

    G 1/2"

  • DN [mm]

    16

  • L [mm]

    69

  • kv value* [l/min]

    68

Immediately available
Inventory check:

Please wait, check is in process...

199,07 €

2/2-way SS solenoid valve G 3/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V=

  • function

    closed (NC) without power

  • Thread

    G 3/4"

  • DN [mm]

    20

  • L [mm]

    73

  • kv value* [l/min]

    108

Immediately available
Inventory check:

Please wait, check is in process...

208,48 €

2/2-way SS solenoid valve G 3/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    230 V AC

  • function

    closed (NC) without power

  • Thread

    G 3/4"

  • DN [mm]

    20

  • L [mm]

    73

  • kv value* [l/min]

    108

Immediately available
Inventory check:

Please wait, check is in process...

208,48 €

2/2-way SS solenoid valve G 3/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    12 V=

  • function

    closed (NC) without power

  • Thread

    G 3/4"

  • DN [mm]

    20

  • L [mm]

    73

  • kv value* [l/min]

    108

Immediately available
Inventory check:

Please wait, check is in process...

208,48 €

2/2-way SS solenoid valve G 3/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V AC

  • function

    closed (NC) without power

  • Thread

    G 3/4"

  • DN [mm]

    20

  • L [mm]

    73

  • kv value* [l/min]

    108

Immediately available
Inventory check:

Please wait, check is in process...

208,48 €

2/2-way SS solenoid valve G 1", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V=

  • function

    closed (NC) without power

  • Thread

    G 1"

  • DN [mm]

    25

  • L [mm]

    99

  • kv value* [l/min]

    171

Immediately available
Inventory check:

Please wait, check is in process...

299,47 €

2/2-way SS solenoid valve G 1", 0-6/10 (DC/AC) bar, NC
  • Voltage

    230 V AC

  • function

    closed (NC) without power

  • Thread

    G 1"

  • DN [mm]

    25

  • L [mm]

    99

  • kv value* [l/min]

    171

Immediately available
Inventory check:

Please wait, check is in process...

299,47 €

2/2-way SS solenoid valve G 1", 0-6/10 (DC/AC) bar, NC
  • Voltage

    12 V=

  • function

    closed (NC) without power

  • Thread

    G 1"

  • DN [mm]

    25

  • L [mm]

    99

  • kv value* [l/min]

    171

Immediately available
Inventory check:

Please wait, check is in process...

299,47 €

2/2-way SS solenoid valve G 1", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V AC

  • function

    closed (NC) without power

  • Thread

    G 1"

  • DN [mm]

    25

  • L [mm]

    99

  • kv value* [l/min]

    171

Immediately available
Inventory check:

Please wait, check is in process...

299,47 €

2/2-way SS solenoid valve G 1-1/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V=

  • function

    closed (NC) without power

  • Thread

    G 1-1/4"

  • DN [mm]

    32

  • L [mm]

    112

  • kv value* [l/min]

    342

Immediately available
Inventory check:

Please wait, check is in process...

549,66 €

2/2-way SS solenoid valve G 1-1/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    230 V AC

  • function

    closed (NC) without power

  • Thread

    G 1-1/4"

  • DN [mm]

    32

  • L [mm]

    112

  • kv value* [l/min]

    342

Immediately available
Inventory check:

Please wait, check is in process...

549,66 €

2/2-way SS solenoid valve G 1-1/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    12 V=

  • function

    closed (NC) without power

  • Thread

    G 1-1/4"

  • DN [mm]

    32

  • L [mm]

    112

  • kv value* [l/min]

    342

Not in stock
Inventory check:

Please wait, check is in process...

549,66 €

2/2-way SS solenoid valve G 1-1/4", 0-6/10 (DC/AC) bar, NC
  • Voltage

    24 V AC

  • function

    closed (NC) without power

  • Thread

    G 1-1/4"

  • DN [mm]

    32

  • L [mm]

    112

  • kv value* [l/min]

    342

Not in stock
Inventory check:

Please wait, check is in process...

549,66 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
