Item group

3-way ball valves, up to 55 bar

Materials:

Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / FKM (G 2-1/2": PTFE / NBR)

Temperature range:

-10°C to max. +120°C

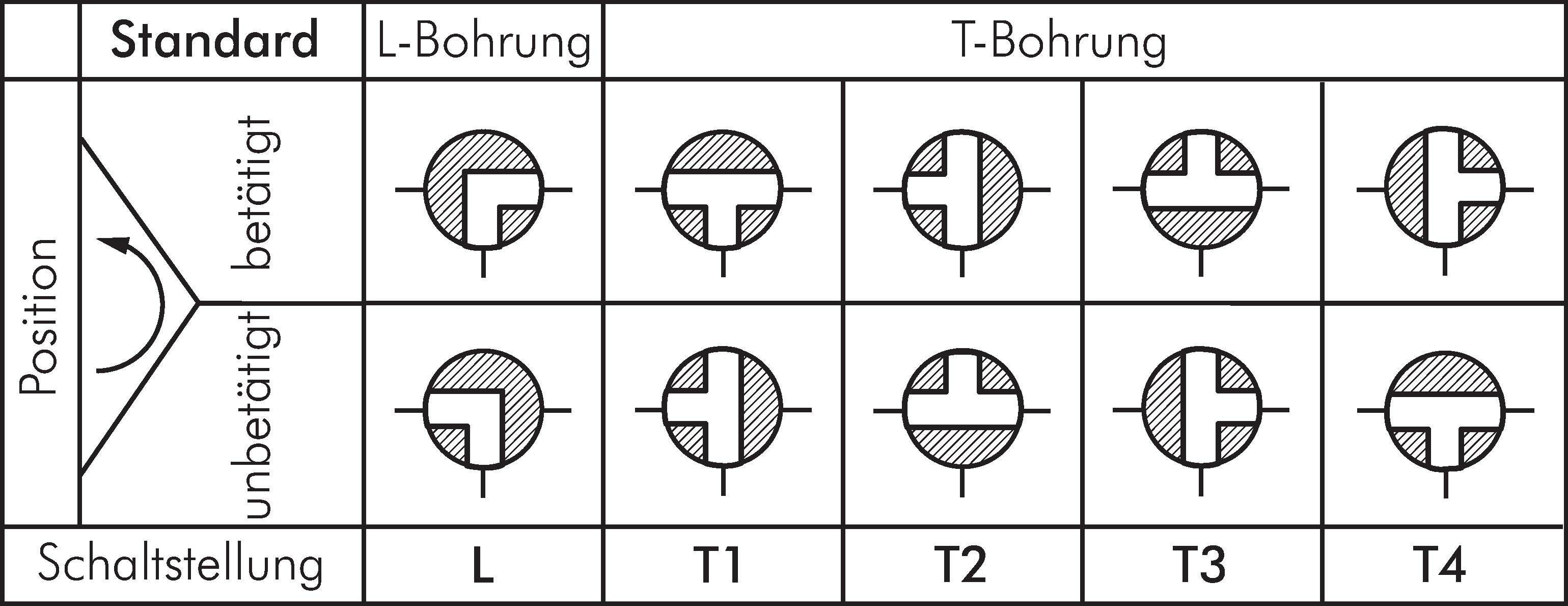

Switching position:

Can be changed by moving the handle. The standard position for T boreholes is position T1.

Properties:

Pressure inlet is possible from all the three sides

Media:

Water, compressed air, vacuum (max. -0.9 bar), oils, fuels (no diesel), heating oil, solvents, weak acids and alkalis.

Documents:

More information Less information
3-way ball valves, up to 55 bar:
20 of 23 articles
3-way ball valve, brass, L-borehole, G 1/4", -0,9 to 55bar(KH 3/14 L MS)
KH 3/14 L MS
3-way ball valve, brass, L-borehole, G 1/4", -0,9 to 55bar
€55.63 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, G 3/8", -0,9 to 55bar(KH 3/38 L MS)
KH 3/38 L MS
3-way ball valve, brass, L-borehole, G 3/8", -0,9 to 55bar
€57.45 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, G 1/2", -0,9 to 50bar(KH 3/12 L MS)
KH 3/12 L MS
3-way ball valve, brass, L-borehole, G 1/2", -0,9 to 50bar
€56.07 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, G 3/4", -0,9 to 50bar(KH 3/34 L MS)
KH 3/34 L MS
3-way ball valve, brass, L-borehole, G 3/4", -0,9 to 50bar
€80.93 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, G 1", -0,9 to 45bar(KH 3/10 L MS)
KH 3/10 L MS
3-way ball valve, brass, L-borehole, G 1", -0,9 to 45bar
€120.36 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, G 1-1/4", -0,9 to 35bar(KH 3/114 L MS)
KH 3/114 L MS
3-way ball valve, brass, L-borehole, G 1-1/4", -0,9 to 35bar
€181.03 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, G 1-1/2", -0,9 to 35bar(KH 3/112 L MS)
KH 3/112 L MS
3-way ball valve, brass, L-borehole, G 1-1/2", -0,9 to 35bar
€249.33 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, G 2", -0,9 to 35bar(KH 3/20 L MS)
KH 3/20 L MS
3-way ball valve, brass, L-borehole, G 2", -0,9 to 35bar
€378.84 incl. VAT
Immediately available
3-way ball valve, brass, L-borehole, Rp 2-1/2", 0 to 40bar(KH 3/212 L MS)
KH 3/212 L MS
3-way ball valve, brass, L-borehole, Rp 2-1/2", 0 to 40bar
€1,082.98 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 1/4", -0,9 to 55bar(KH 3/14 T MS)
KH 3/14 T MS
3-way ball valve, brass, T-borehole, G 1/4", -0,9 to 55bar
€55.63 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 3/8", -0,9 to 55bar(KH 3/38 T MS)
KH 3/38 T MS
3-way ball valve, brass, T-borehole, G 3/8", -0,9 to 55bar
€57.45 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 1/2", -0,9 to 50bar(KH 3/12 T MS)
KH 3/12 T MS
3-way ball valve, brass, T-borehole, G 1/2", -0,9 to 50bar
€56.07 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 3/4", -0,9 to 50bar(KH 3/34 T MS)
KH 3/34 T MS
3-way ball valve, brass, T-borehole, G 3/4", -0,9 to 50bar
€80.93 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 1", -0,9 to 45bar(KH 3/10 T MS)
KH 3/10 T MS
3-way ball valve, brass, T-borehole, G 1", -0,9 to 45bar
€120.36 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 1-1/4", -0,9 to 35bar(KH 3/114 T MS)
KH 3/114 T MS
3-way ball valve, brass, T-borehole, G 1-1/4", -0,9 to 35bar
€181.03 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 1-1/2", -0,9 to 35bar(KH 3/112 T MS)
KH 3/112 T MS
3-way ball valve, brass, T-borehole, G 1-1/2", -0,9 to 35bar
€249.33 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, G 2", -0,9 to 35bar(KH 3/20 T MS)
KH 3/20 T MS
3-way ball valve, brass, T-borehole, G 2", -0,9 to 35bar
€378.84 incl. VAT
Immediately available
3-way ball valve, brass, T-borehole, Rp 2-1/2", 0 to 40bar(KH 3/212 T MS)
KH 3/212 T MS
3-way ball valve, brass, T-borehole, Rp 2-1/2", 0 to 40bar
€1,082.98 incl. VAT
Immediately available
GRIFF F.KUGELHAHN 3-WEGE 1/4" BIS 1/2" T ODER L-BO(G KH3/14-12)
G KH3/14-12
GRIFF F.KUGELHAHN 3-WEGE 1/4" BIS 1/2" T ODER L-BO
€7.16 incl. VAT
Immediately available
GRIFF F.KUGELHAHN 3-WEGE 3/4" T ODER L BOHRUNG(G KH3/34)
G KH3/34
GRIFF F.KUGELHAHN 3-WEGE 3/4" T ODER L BOHRUNG
€9.89 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
