Item group

3-way ball valves with direct assembly flange (ISO 5211), PN 40

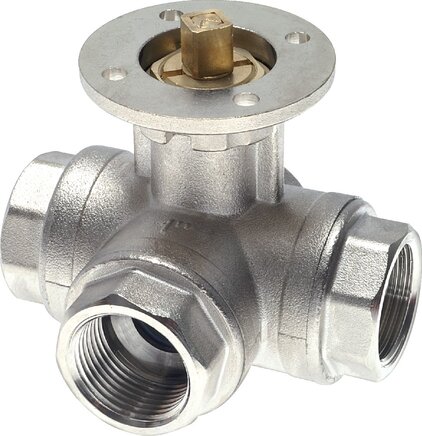

Name: 3-way ball valve, direct assembly flange G 1/4", L-borehole
Brand: Landefeld
SKU: KH 3/14 LF MS
Price: 158.56 EUR
Availability: InStock

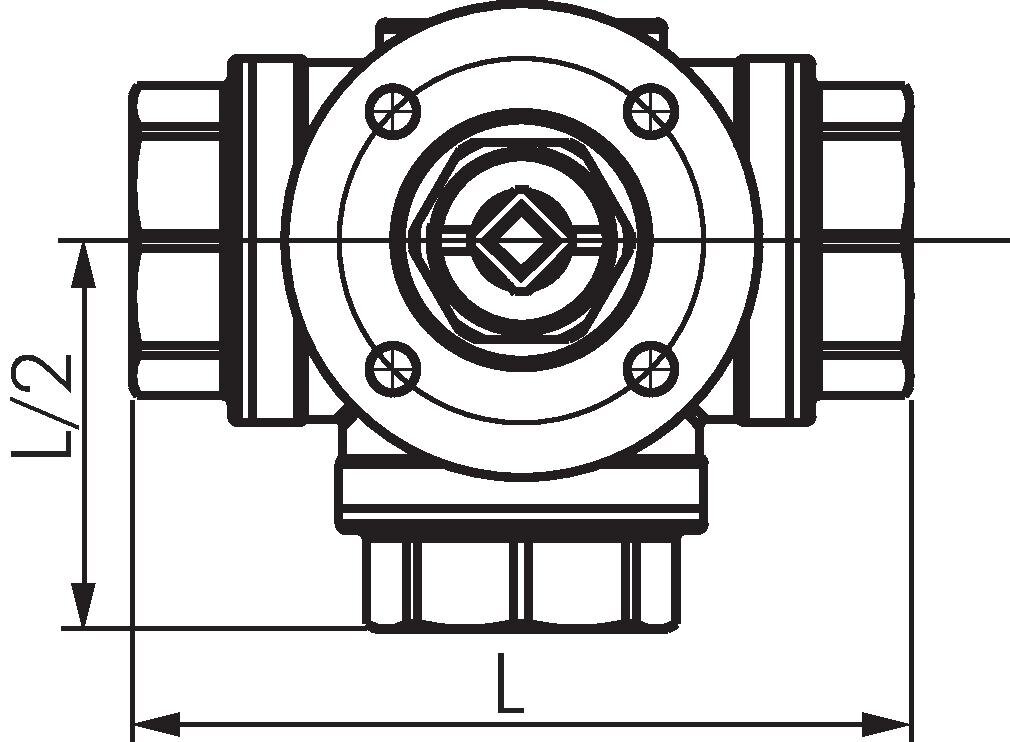

Principskitse: 3-vejs-kuglehane med flange til direkte montering

YouTube videos:

Direkte monteringsflange i henhold til ISO 5211 – en enkel og hurtig løsning!

Materials:

Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / NBR

Temperature range:

-10 to +100 °C

Properties:

Pressure inlet is possible from all the three sides

Media:

Water, oil, compressed air, fuels, heating oil, solvents, weak acids and alkalis

Advantages:

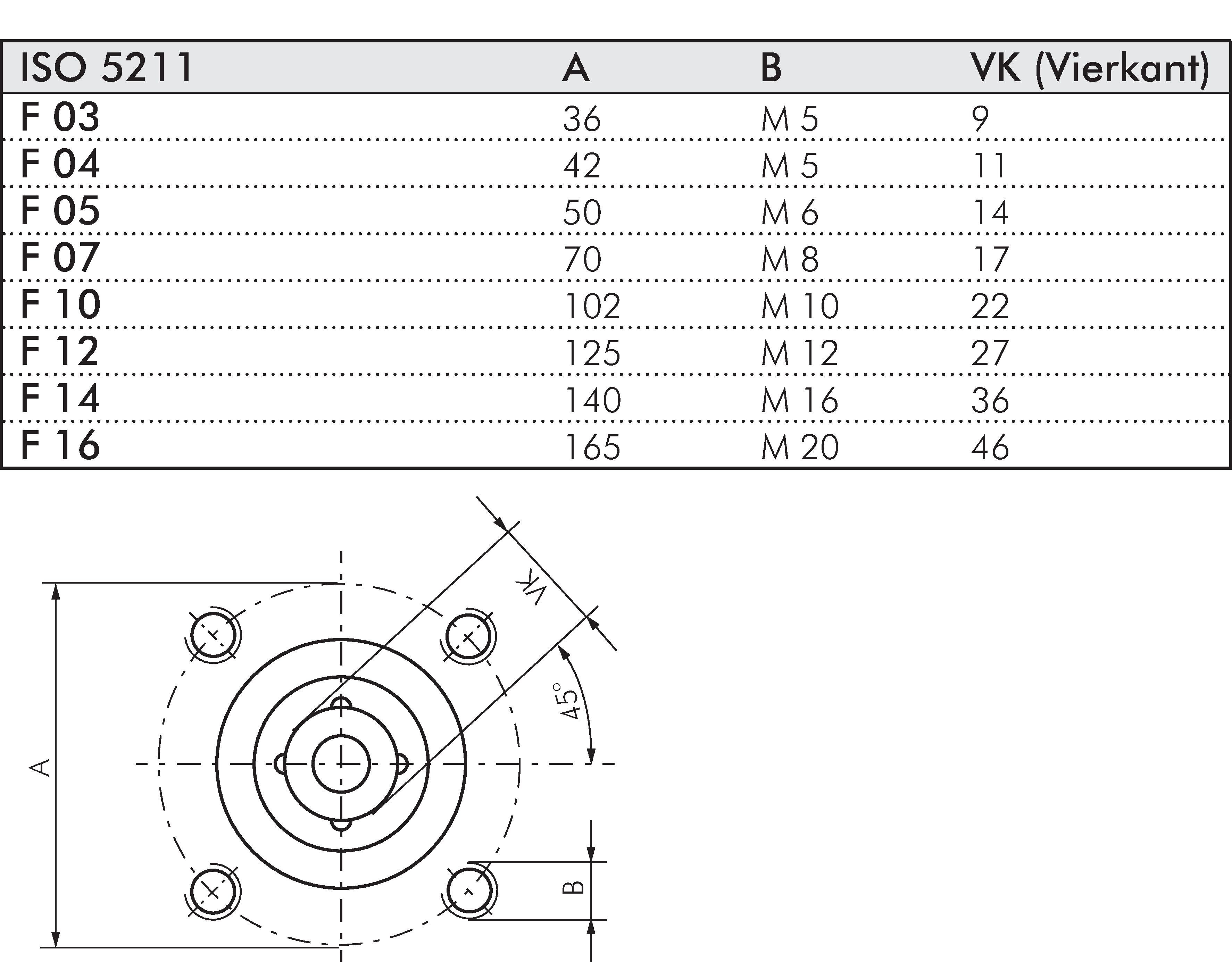

•A drive can be mounted directly on the ISO 5211 direct assembly flange to automate the ball valve.

Documents:

Catalogue page Atlas 9 (Page 537) (PDF)

More information

3-way ball valves with direct assembly flange (ISO 5211), PN 40:

18 of 18 articles

KH 3/14 LF MS

3-way ball valve, direct assembly flange G 1/4", L-borehole

€158.56 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1/4"	10	76

KH 3/38 LF MS

3-way ball valve, direct assembly flange G 3/8", L-borehole

€167.77 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 3/8"	10	78

KH 3/12 LF MS

3-way ball valve, direct assembly flange G 1/2", L-borehole

€127.76 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1/2"	10	82

KH 3/34 LF MS

3-way ball valve, direct assembly flange G 3/4", L-borehole

€226.93 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 3/4"	15	90

KH 3/10 LF MS

3-way ball valve, direct assembly flange G 1", L-borehole

€269.05 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1"	20	107

KH 3/114 LF MS

3-way ball valve, direct assembly flange G 1-1/4", L-borehole

€363.72 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1-1/4"	25	120

KH 3/112 LF MS

3-way ball valve, direct assembly flange G 1-1/2", L-borehole

€465.69 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1-1/2"	32	142

KH 3/20 LF MS

3-way ball valve, direct assembly flange G 2", L-borehole

€757.13 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 2"	40	165

KH 3/212 LF MS

3-way ball valve, direct assembly flange G 2-1/2", L-borehole

€1,599.65 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 2-1/2"	50	194

KH 3/14 TF MS

3-way ball valve, direct assembly flange G 1/4", T-borehole

€158.56 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1/4"	10	76

KH 3/38 TF MS

3-way ball valve, direct assembly flange G 3/8", T-borehole

€167.77 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 3/8"	10	78

KH 3/12 TF MS

3-way ball valve, direct assembly flange G 1/2", T-borehole

€127.75 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1/2"	10	82

KH 3/34 TF MS

3-way ball valve, direct assembly flange G 3/4", T-borehole

€226.94 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 3/4"	15	90

KH 3/10 TF MS

3-way ball valve, direct assembly flange G 1", T-borehole

€269.05 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1"	20	107

KH 3/114 TF MS

3-way ball valve, direct assembly flange G 1-1/4", T-borehole

€363.72 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1-1/4"	25	120

KH 3/112 TF MS

3-way ball valve, direct assembly flange G 1-1/2", T-borehole

€465.69 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1-1/2"	32	142

KH 3/20 TF MS

3-way ball valve, direct assembly flange G 2", T-borehole

€757.13 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 2"	40	165

KH 3/212 TF MS

3-way ball valve, direct assembly flange G 2-1/2", T-borehole

€1,599.65 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 2-1/2"	50	194

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
