Item group

3/2-way & 5/2-way spring pin valves, Standard

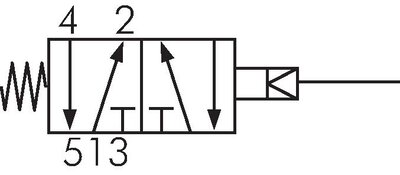

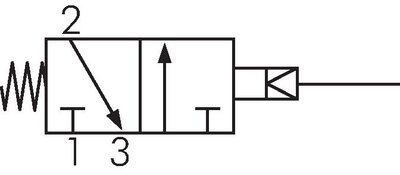

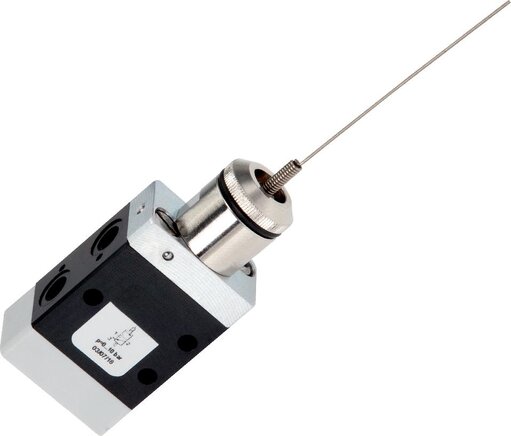

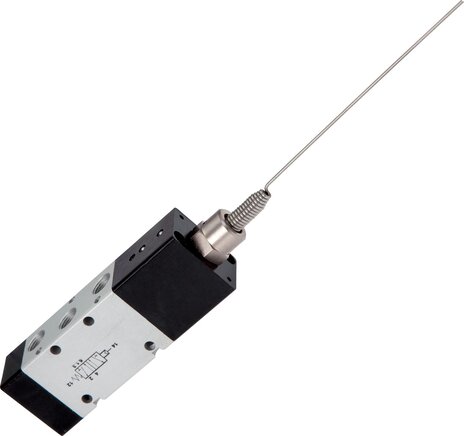

Exemplary representation: 3/2-way spring rod valve (M 5) Exemplary representation: 3/2-way spring rod valve (G 1/8") Exemplary representation: 5/2-way spring rod valve Schematic symbol: 3/2-way spring rod valve Schematic symbol: 5/2-way spring rod valve

Temperature range:

-10°C to +60°C

Media:

oiled and unoiled filtered compressed air
*low own air consumption and very low actuating force

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 747) atlas9_seiten/747.pdf
    Directional valves - Overview, function and explanation of 3/2-way valves
    Directional valves - Overview, function and explanation of 5/2-way valves
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way & 5/2-way spring pin valves, Standard:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
EF 25 310 *
Spring pin valve, 3/2-way (NC), M 5
267,85€ incl. VAT
EF 18 310
Spring pin valve, 3/2-way (NC), G 1/8"
56,22€ incl. VAT
EF 18 510
Spring pin valve, 5/2-way, G 1/8"
61,84€ incl. VAT
EF 25 FEDER
Spring pin valve, Replacement spring bar,
25,17€ incl. VAT
EF 18 FEDER
Spring pin valve, Replacement spring bar,
19,47€ incl. VAT
