Item group

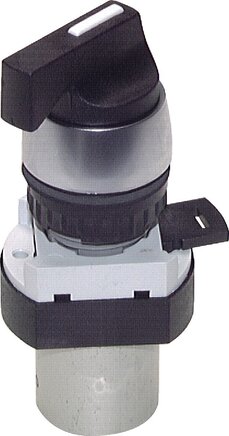

3/2-way button activated valves & rotary switch M5 (Ø 22.5), Series T 22
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10 to +70 °C
Operating pressure:
0 to 12 bar
Flow:
80 l/min (nominal width 2 mm)
Media:
oiled and unoiled filtered compressed air

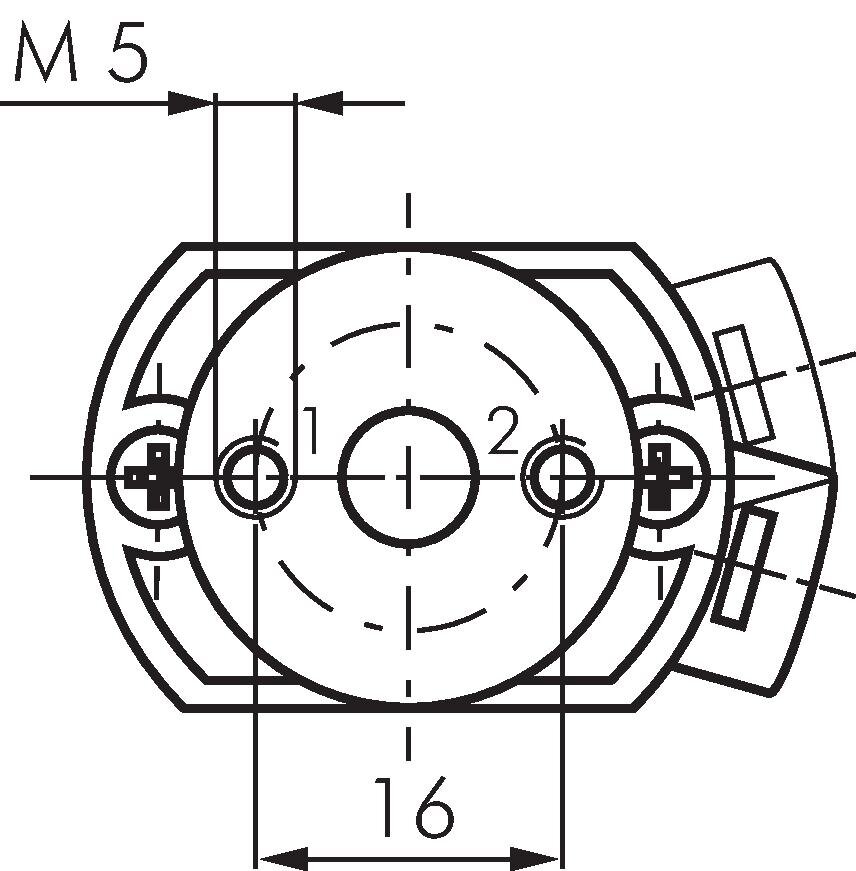

Pressure input:
Connection 1, venting via lateral borehole in the housing.
Switch panel borehole:
Ø 22,5 mm
*With white line (ON)
Documents:
More information
3/2-way button activated valves & rotary switch M5 (Ø 22.5), Series T 22:
13 of 13 articles
€42.61
incl. VAT
T 22 311 SCHWARZ

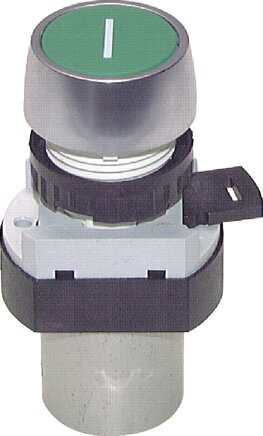

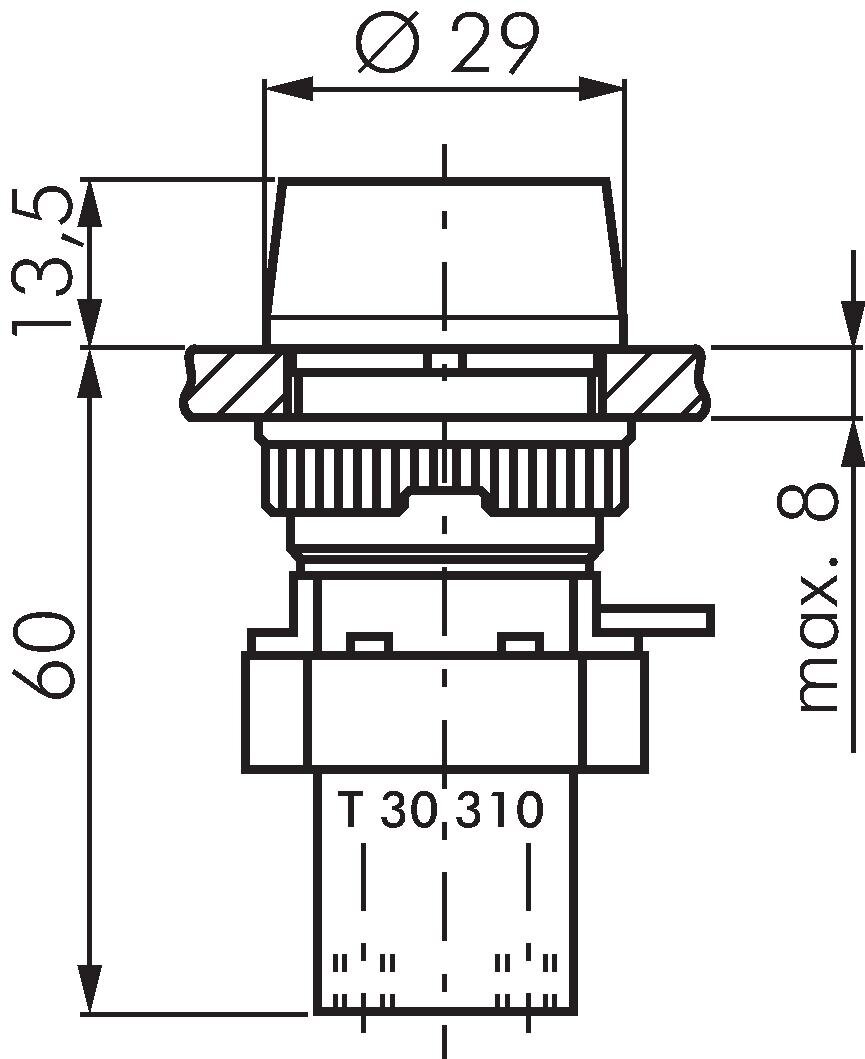

3/2-way Pushbutton-valve, black (22,5mm), M5
€51.18
incl. VAT
T 22 311 ROT
3/2-way Pushbutton-valve, red (22,5mm), M5
€51.18
incl. VAT
T 22 311 GRUN *
3/2-way Pushbutton-valve, green (22,5mm), M5
€51.18
incl. VAT
T 22 311 GELB
3/2-way Pushbutton-valve, yellow (22,5mm), M5
€51.18
incl. VAT
T 22 311 BLAU
3/2-way Pushbutton-valve, blue (22,5mm), M5
€51.18
incl. VAT

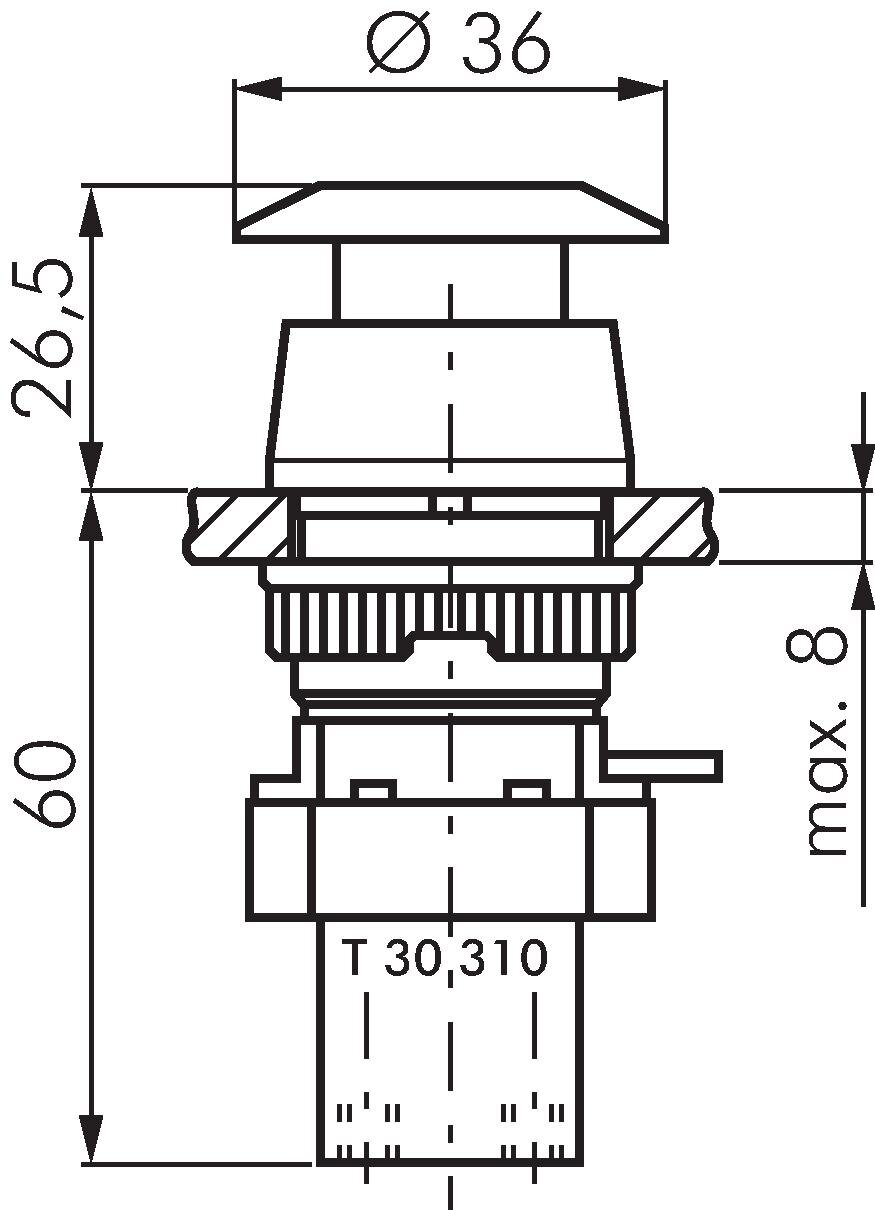

T 22 312 SCHWAR

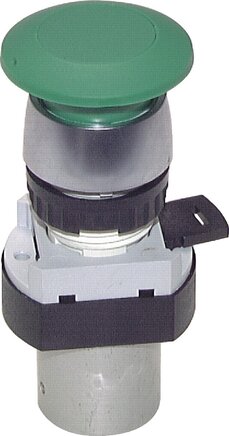

3/2-way Mushroom button-valve, black (22,5mm), M5
€52.61
incl. VAT
T 22 312 ROT
3/2-way Mushroom button-valve, red (22,5mm), M5
€52.61
incl. VAT
T 22 312 GRUN
3/2-way Mushroom button-valve, green (22,5mm), M5
€52.61
incl. VAT
€60.04
incl. VAT
€194.16
incl. VAT
€206.35
incl. VAT
€72.88
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
