Item group

3/2-way pneumatic valves G 1/4", model series RV30

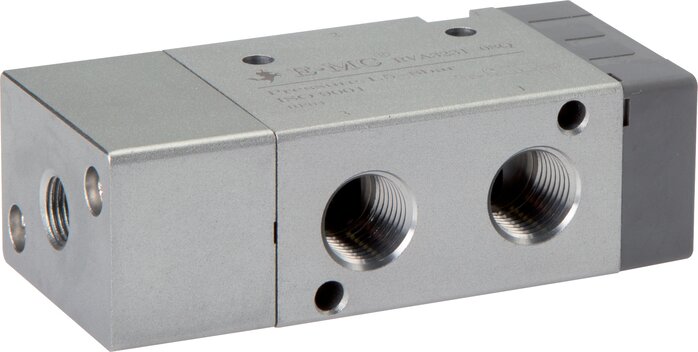

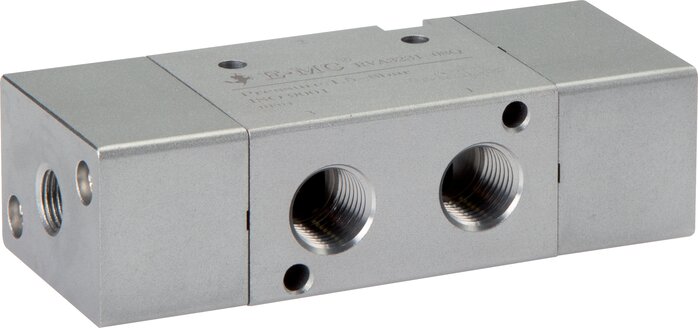

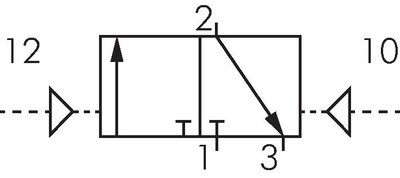

Exemplary representation: 3/2-way pneumatic valve with spring return (NC or NO) Exemplary representation: 3/2-way pneumatic pulse valve Schematic symbol: 3/2-way pneumatic valve, home position closed (NC) Schematic symbol: 3/2-way pneumatic valve, home position open (NO) Schematic symbol: 3/2-way pneumatic pulse valve

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:

-5°C to +60°C

Operating pressure:

1,5 to 8 bar

Control pressure:

2 to 8 bar

Media:

oiled and unoiled filtered compressed air

Service life:

min. 40 million switching cycles
*Pneumatic spring

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 722) atlas9_seiten/722.pdf
    Directional valves - Overview, function and explanation of 3/2-way valves
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way pneumatic valves G 1/4", model series RV30:
