Item group

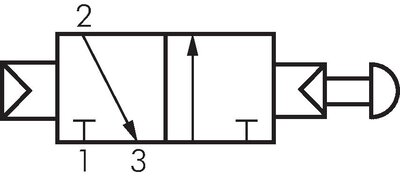

3/2-way servo key return switches, low actuating force
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Operating pressure:
3 to 10 bar
Media:
unoiled, filtered compressed air
Construction type and function:
•Pilot operated piston spool valve with low actuating force. Unactuated, a small quantity of air of approx. 2.5 l/min escapes in the pilot part,
•Venting takes place through a drill hole on the base of the valve and therefore, the area within the four feet of the valve may not be covered,
•For switching on machines and fixtures of all kinds, especially in pairs as two-hand control. The small switching force of the servo principle ensures fatigue-free work even in continuous operation,
•The bracket around the button protects against accidental actuation.
•Venting takes place through a drill hole on the base of the valve and therefore, the area within the four feet of the valve may not be covered,
•For switching on machines and fixtures of all kinds, especially in pairs as two-hand control. The small switching force of the servo principle ensures fatigue-free work even in continuous operation,
•The bracket around the button protects against accidental actuation.
Documents:
More information
Filter items
more filters
3/2-way servo key return switches, low actuating force:
1 of 1 articles

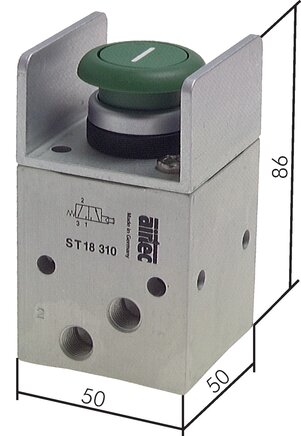

ST 18 310
3/2-way safety button G 1/8"
€115.99
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
