Valvole di arresto a 3/2 vie con filettatura esterna, Standard
Item group
3/2-way shut-off valves with male threads, Standard

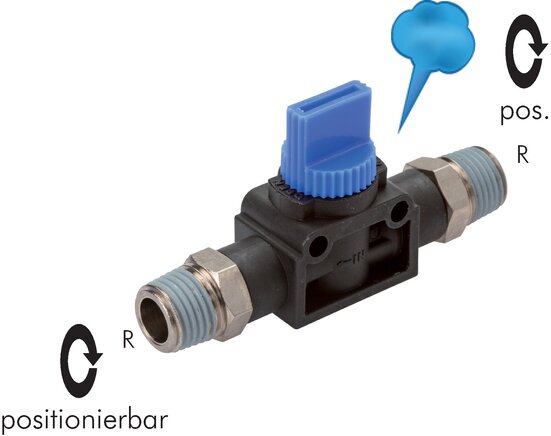

Illustrazione esemplare: Valvole di arresto a 3/2 vie con filettatura esterna
Disegno: Struttura valvole manuali a 3/2 vie
Simbolo di comando: Valvola di arresto a 3/2 vie
Illustrazione esemplare: Valvole di arresto a 3/2 vie con filettatura esterna
Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 20 bar
Functional principle:
The 3/2-way valves shut off the airflow and vent the secondary side.
Media:
Compressed air, neutral gases
Application example:
To control single-acting small cylinders or to shut off small pneumatic assemblies.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
