Item group

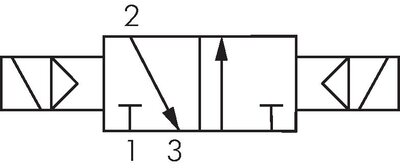

3/2-way solenoid impulse valves, Series M
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1)
Pressure input:
Connection 1
Documents:
More information
3/2-way solenoid impulse valves, Series M:
20 of 20 articles
M 04320HN 24V=
3/2-way solenoid pulse valve, G 1/8", 24 V DC
€106.02
incl. VAT
M 04320HN 230V
3/2-way solenoid pulse valve, G 1/8", 230 V AC
€106.02
incl. VAT
M 04320HN 12V=
3/2-way solenoid pulse valve, G 1/8", 12 V DC
€106.02
incl. VAT
M 04320HN 24VAC
3/2-way solenoid pulse valve, G 1/8", 24 V AC
€106.02
incl. VAT
Not in stock
M 04320HN 115V
3/2-way solenoid pulse valve, G 1/8", 115 V AC
€106.02
incl. VAT
Not in stock
M 05320HN 24V=
3/2-way solenoid pulse valve, G 1/8", 24 V DC
€128.77
incl. VAT
M 05320HN 230V
3/2-way solenoid pulse valve, G 1/8", 230 V AC
€128.77
incl. VAT
M 05320HN 12V=
3/2-way solenoid pulse valve, G 1/8", 12 V DC
€128.77
incl. VAT
Not in stock
M 05320HN 24VAC
3/2-way solenoid pulse valve, G 1/8", 24 V AC
€128.77
incl. VAT
Not in stock
M 05320HN 115V
3/2-way solenoid pulse valve, G 1/8", 115 V AC
€128.77
incl. VAT
Not in stock

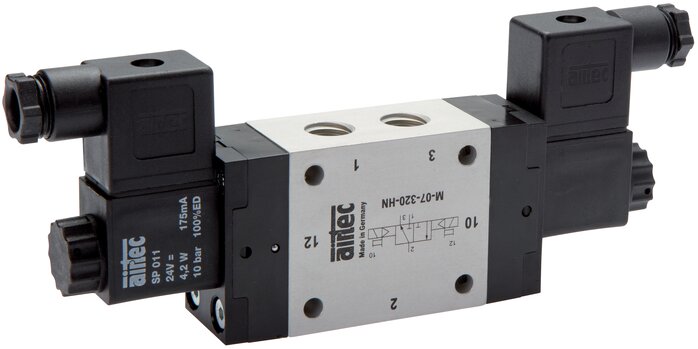

M 07320HN 24V=
3/2-way solenoid pulse valve, G 1/4", 24 V DC
€146.08
incl. VAT
M 07320HN 230V
3/2-way solenoid pulse valve, G 1/4", 230 V AC
€146.08
incl. VAT
M 07320HN 12V=
3/2-way solenoid pulse valve, G 1/4", 12 V DC
€146.08
incl. VAT
Not in stock
M 07320HN 24VAC
3/2-way solenoid pulse valve, G 1/4", 24 V AC
€146.08
incl. VAT
Not in stock
M 07320HN 115V
3/2-way solenoid pulse valve, G 1/4", 115 V AC
€146.08
incl. VAT
M 22320HN 24V=
3/2-way solenoid pulse valve, G 1/2", 24 V DC
€274.64
incl. VAT
M 22320HN 230V
3/2-way solenoid pulse valve, G 1/2", 230 V AC
€274.64
incl. VAT
M 22320HN 12V=
3/2-way solenoid pulse valve, G 1/2", 12 V DC
€274.64
incl. VAT
M 22320HN 24VAC
3/2-way solenoid pulse valve, G 1/2", 24 V AC
€274.64
incl. VAT
M 22320HN 115V
3/2-way solenoid pulse valve, G 1/2", 115 V AC
€274.64
incl. VAT
Not in stock
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
