Item group

3/2-way solenoid valves from stainless steel

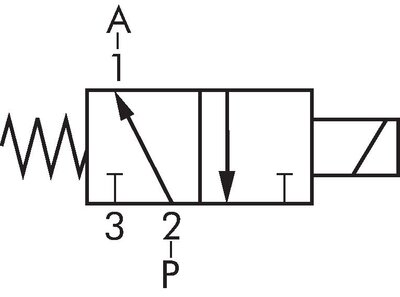

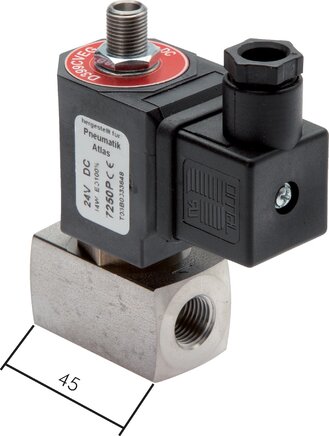

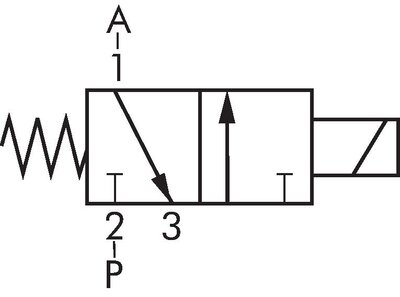

Exemplary representation: 3/2-directional stainless steel solenoid valve Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO)

Materials:

Body: 1.4104, seal: FKM

Temperature range:

-10°C to +130°C, environment: max. +50°C

Installation position:

With upright magnets

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65 (plug size 3)

Warning:

Pressure connection contrary to the standard at connection 2, venting via connection 3

Information:

These valves are always supplied with a solenoid coil and a connector plug.
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 716) atlas9_seiten/716.pdf
