Item group
3/2-way solenoid valves G 1/2", model series RV40
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Service life:
min. 40 million switching cycles
Structural shape solenoid coil:
T1 (plug size 1)
Information:
The coil and plug are enclosed as loose parts.
*mechanical spring
Documents:
More information
3/2-way solenoid valves G 1/2", model series RV40:
12 of 12 articles

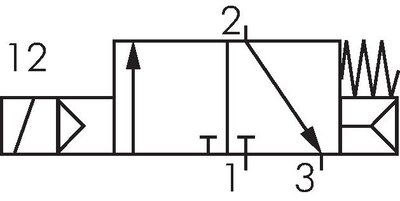

RV 3241-15-24V=
3/2-way solenoid valve, G 1/2", closed (NC), 24 V DC
€124.69
incl. VAT
RV 3241-15-230V
3/2-way solenoid valve, G 1/2", closed (NC), 230 V AC
€124.69
incl. VAT
RV 3241-15-12V=
3/2-way solenoid valve, G 1/2", closed (NC), 12 V DC
€124.69
incl. VAT
RV 3241-15-24VAC
3/2-way solenoid valve, G 1/2", closed (NC), 24 V AC
€124.69
incl. VAT

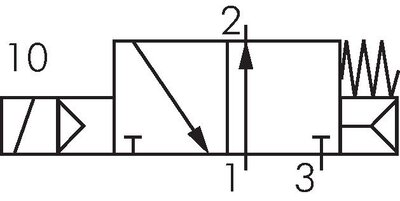

RV 3241-15H-24V=
3/2-way solenoid valve, G 1/2", open (NO), 24 V DC
€124.69
incl. VAT
RV 3241-15H-230V
3/2-way solenoid valve, G 1/2", open (NO), 230 V AC
€124.69
incl. VAT
RV 3241-15H-12V=
3/2-way solenoid valve, G 1/2", open (NO), 12 V DC
€124.69
incl. VAT
RV 3241-15H-24VAC
3/2-way solenoid valve, G 1/2", open (NO), 24 V AC
€124.69
incl. VAT
RV 3242-15-24V=
3/2-way solenoid valve, G 1/2", pulse valve, 24 V DC
€153.26
incl. VAT
RV 3242-15-230V
3/2-way solenoid valve, G 1/2", pulse valve, 230 V AC
€153.26
incl. VAT
RV 3242-15-12V=
3/2-way solenoid valve, G 1/2", pulse valve, 12 V DC
€153.26
incl. VAT
RV 3242-15-24VAC
3/2-way solenoid valve, G 1/2", pulse valve, 24 V AC
€153.26
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
