Item group

3/2-way solenoid valves G 1/4", model series RV30

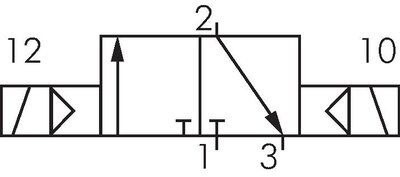

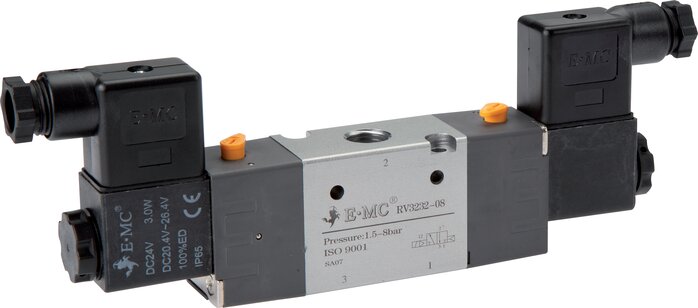

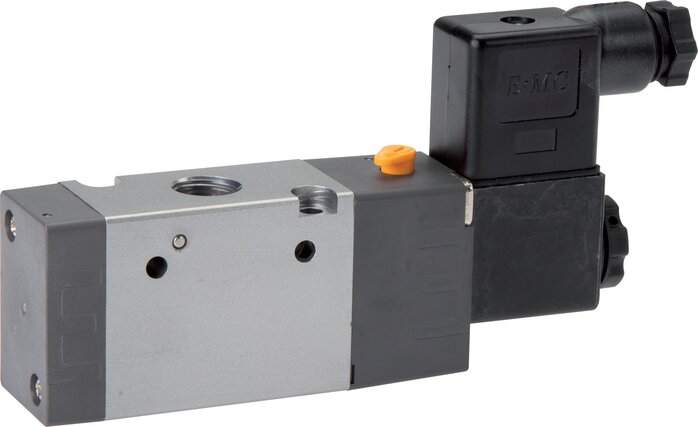

Exemplary representation: 3/2-way solenoid valve with spring return (NC or NO) Exemplary representation: 3/2-way solenoid pulse valve Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO) Schematic symbol: 3/2-way solenoid pulse valve

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:

-5°C to +60°C

Operating pressure:

1,5 to 8 bar

Media:

oiled and unoiled filtered compressed air

Switching time (at 5 bar):

<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65

Service life:

min. 40 million switching cycles

Structural shape solenoid coil:

T1 (plug size 1)

Information:

The coil and plug are enclosed as loose parts.
*Pneumatic spring

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 718) atlas9_seiten/718.pdf
    Directional valves - Overview, function and explanation of 3/2-way valves
