Item group

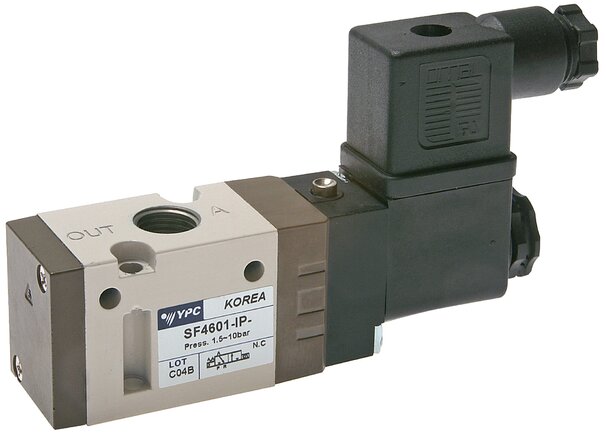

3/2-way solenoid valves G 1/4", Series SF4000
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Documents:
More information
3/2-way solenoid valves G 1/4", Series SF4000:
10 of 10 articles
SF4601 IPSC-D4
3/2-way solenoid valve, G 1/4", closed (NC), 24 V DC
€61.52
incl. VAT
SF4601 IPSC-A2
3/2-way solenoid valve, G 1/4", closed (NC), 230 V AC
€61.52
incl. VAT
SF4601 IPSC-D2
3/2-way solenoid valve, G 1/4", closed (NC), 12 V DC
€61.52
incl. VAT
SF4601 IPSC-A4
3/2-way solenoid valve, G 1/4", closed (NC), 24 V AC
€61.52
incl. VAT
SF4601 IPSC-A1
3/2-way solenoid valve, G 1/4", closed (NC), 115 V AC
€61.52
incl. VAT
SF4701 IPSC-D4
3/2-way solenoid valve, G 1/4", open (NO), 24 V DC
€64.11
incl. VAT
SF4701 IPSC-A2
3/2-way solenoid valve, G 1/4", open (NO), 230 V AC
€64.11
incl. VAT
SF4701 IPSC-D2
3/2-way solenoid valve, G 1/4", open (NO), 12 V DC
€64.11
incl. VAT
SF4701 IPSC-A4
3/2-way solenoid valve, G 1/4", open (NO), 24 V AC
€64.11
incl. VAT
SF4701 IPSC-A1
3/2-way solenoid valve, G 1/4", open (NO), 115 V AC
€64.11
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
