Item group

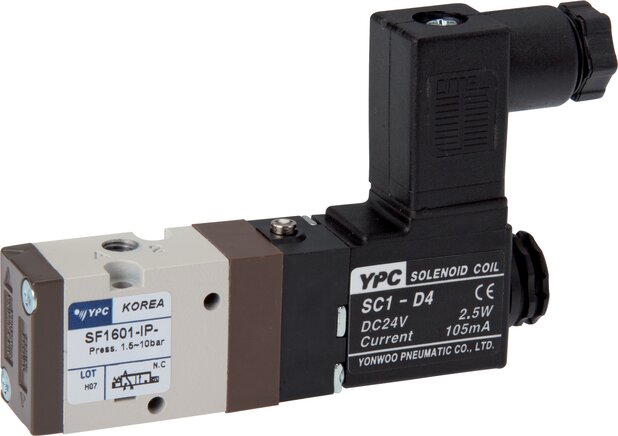

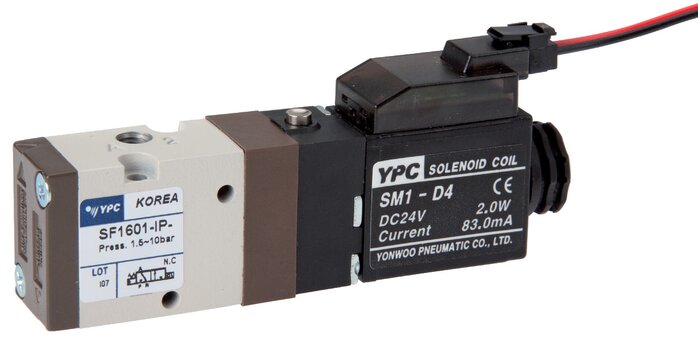

3/2-way solenoid valves M5 , Series SF1000

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10 to +60 °C

Media:

oiled and unoiled filtered compressed air

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Information:

These valves are always supplied with a solenoid coil and a connector plug.

Switching time (at 5 bar):

< 25 ms

Protection class:

IP 65 (with rectangular plug SY100: IP 40)

Structural shape solenoid coil:

L

Documents:

More information Less information

Filter items

Thread internal
Please select
3/2-way solenoid valves M5 , Series SF1000:
12 of 12 articles
€62.48 incl. VAT
Immediately available
€62.48 incl. VAT
Immediately available
€62.48 incl. VAT
Immediately available
€62.48 incl. VAT
deliverable again in ⌀ 14 weeks
€62.48 incl. VAT
Immediately available
€62.48 incl. VAT
Immediately available
€62.48 incl. VAT
Immediately available
€62.48 incl. VAT
Immediately available
€62.48 incl. VAT
Not in stock
€62.48 incl. VAT
Not in stock
€67.57 incl. VAT
Immediately available
€70.39 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
