Item group

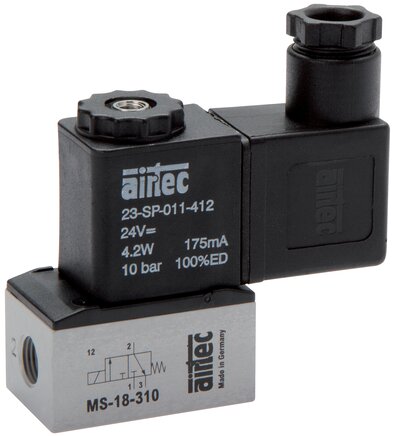

3/2-way solenoid valves, Series MS

Materials:

Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR

Temperature range:

-10 to +70 °C

Media:

oiled and unoiled filtered compressed air

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65

Information:

These valves are always supplied with a solenoid coil and a connector plug.

Structural shape solenoid coil:

N (plug size 1) (M 5: O, plug size 0)

Pressure input:

Connection 1 (NO valve: Connection 3 - anchor)
*is supplied with 3 metres of cable

Documents:

More information Less information

Filter items

Pitch dimension [mm]
Please select
Max. number of valve spaces
Please select
Operating pressure [bar]
Please select
Max. tightening torque Valve fastening [Nm]
Please select
more filters
3/2-way solenoid valves, Series MS:
16 of 16 articles
3/2-way solenoid valve, M 5, 24 V DC, closed (NC)(MS 20310 24V=)
MS 20310 24V=
3/2-way solenoid valve, M 5, 24 V DC, closed (NC)
€40.15 incl. VAT
Immediately available
3/2-way solenoid valve, M 5, 12 V DC, closed (NC)(MS 20310 12V=)
MS 20310 12V=
3/2-way solenoid valve, M 5, 12 V DC, closed (NC)
€40.15 incl. VAT
Immediately available
3/2-way solenoid valve, M 5, 24 V DC, closed (NC)(MS 20310HN 24V=)
MS 20310HN 24V=
3/2-way solenoid valve, M 5, 24 V DC, closed (NC)
€44.34 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 24 V DC, closed (NC)(MS 18310 24V=)
MS 18310 24V=
3/2-way solenoid valve, G 1/8", 24 V DC, closed (NC)
€31.15 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 230 V AC, closed (NC)(MS 18310 230V)
MS 18310 230V
3/2-way solenoid valve, G 1/8", 230 V AC, closed (NC)
€31.15 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 12 V DC, closed (NC)(MS 18310 12V=)
MS 18310 12V=
3/2-way solenoid valve, G 1/8", 12 V DC, closed (NC)
€31.15 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 24 V AC, closed (NC)(MS 18310 24VAC)
MS 18310 24VAC
3/2-way solenoid valve, G 1/8", 24 V AC, closed (NC)
€31.15 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 115 V AC, closed (NC)(MS 18310 115V)
MS 18310 115V
3/2-way solenoid valve, G 1/8", 115 V AC, closed (NC)
€31.15 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 24 V DC, closed (NC)(MS 18310HN 24V=)
MS 18310HN 24V=
3/2-way solenoid valve, G 1/8", 24 V DC, closed (NC)
€33.77 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 230 V AC, closed (NC)(MS 18310HN 230V)
MS 18310HN 230V
3/2-way solenoid valve, G 1/8", 230 V AC, closed (NC)
€33.77 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 12 V DC, closed (NC)(MS 18310HN 12V=)
MS 18310HN 12V=
3/2-way solenoid valve, G 1/8", 12 V DC, closed (NC)
€33.77 incl. VAT
Not in stock
3/2-way solenoid valve, G 1/8", 24 V AC, closed (NC)(MS 18310HN 24VAC)
MS 18310HN 24VAC
3/2-way solenoid valve, G 1/8", 24 V AC, closed (NC)
€33.77 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 24 V DC, closed (NC)(MS 18310HN 24X)
MS 18310HN 24X *
3/2-way solenoid valve, G 1/8", 24 V DC, closed (NC)
€140.60 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 230 V AC, closed (NC)(MS 18310HN 230X)
MS 18310HN 230X *
3/2-way solenoid valve, G 1/8", 230 V AC, closed (NC)
€141.88 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 24 V DC, open (NO)(MSO 18310HN 24V=)
MSO 18310HN 24V=
3/2-way solenoid valve, G 1/8", 24 V DC, open (NO)
€35.65 incl. VAT
Immediately available
3/2-way solenoid valve, G 1/8", 230 V AC, open (NO)(MSO 18310HN 230V)
MSO 18310HN 230V
3/2-way solenoid valve, G 1/8", 230 V AC, open (NO)
€35.65 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
