Item group

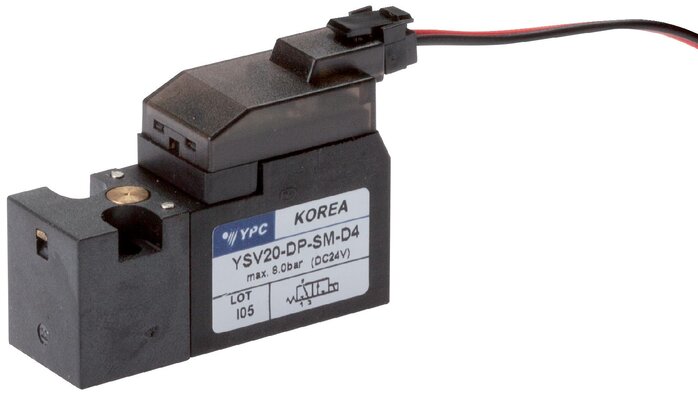

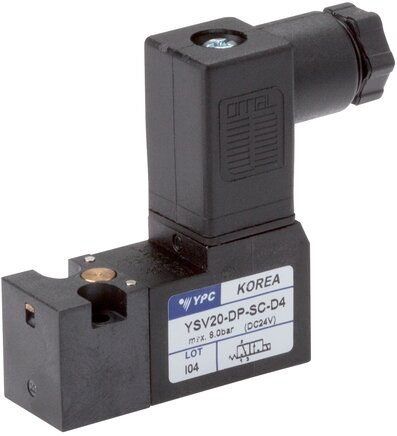

3/2-way solenoid valves with flange connection, Series YSV20
Materials:
Body: plastic, seals: NBR
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,1 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Scope of delivery:
with screws and seals
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Documents:
More information
Filter items
more filters
3/2-way solenoid valves with flange connection, Series YSV20:
5 of 5 articles
€38.27
incl. VAT
€38.27
incl. VAT
€38.27
incl. VAT
€38.27
incl. VAT
€42.77
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
