Item group

5/2-way & 5/3-way ISO valves(ISO 5599/1), ISO size 1

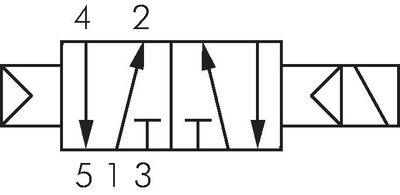

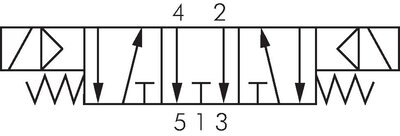

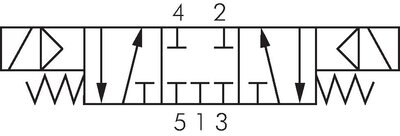

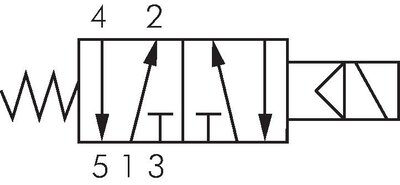

Exemplary representation: 5/2-way (spring return) Exemplary representation: 5/2-way pulse valve Schematic symbol: 5/2-way solenoid-valves, resetting: Pneumatic spring Schematic symbol: 5/2-way solenoid-valves, resetting: Spring Schematic symbol: 5/2-way solenoid pulse valves Schematic symbol: 5/3-way solenoid valves, centre position closed Schematic symbol: 5/3-way solenoid valves, centre position vented

Materials:

Body: anodized aluminium, internal parts: stainless steel and brass, seal: plastic, NBR

Temperature range:

-10°C to +70°C

Control voltages:

Standard: 24 V=, 230 V AC, upon request: other voltages

Power consumption:

Direct current: 4.2 W, alternating current: 4.0 VA (draw: 7.0 VA)

Protection class:

IP 65

Solenoid:

N (plug size 1)

Scope of delivery:

Valve including flange seal and fastening screws

Information:

These valves are generally delivered with coils and plugs!
*air spring, **mechanical spring

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 756) atlas9_seiten/756.pdf
