Item group

5/2-way and 5/3-way foot valves, Series FT

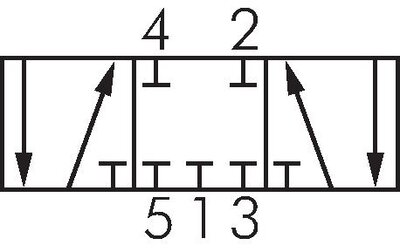

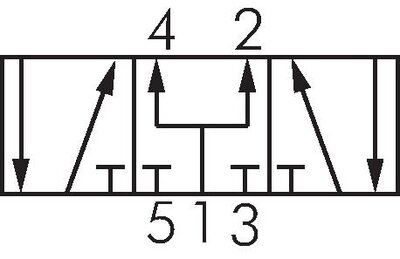

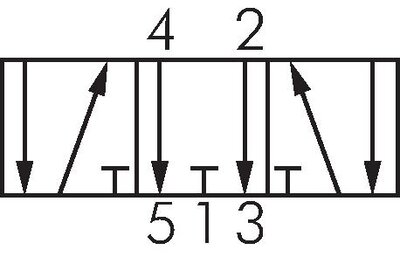

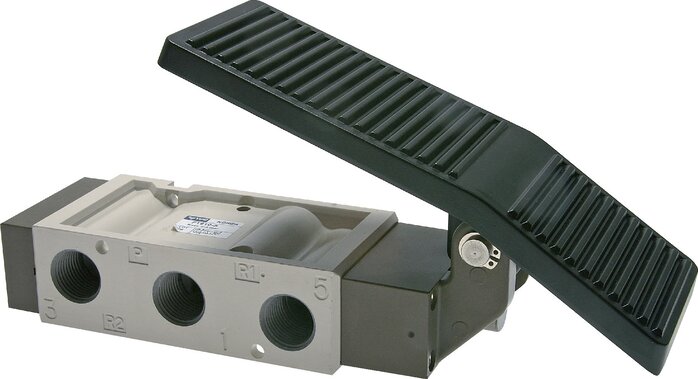

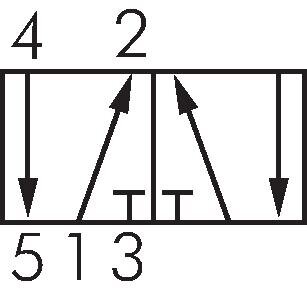

Exemplary representation: G 1/4" & G 3/8" Exemplary representation: G 1/2" Schematic symbol: 5/2-way Schematic symbol: 5/3-way (centre position closed) Schematic symbol: 5/3-directional (centre position vented) Schematic symbol: 5/3-directional (centre position ventilated)

Materials:

valve body: aluminium, foot pedal: aluminium, seals: NBR

Temperature range:

-10°C to +60°C

Operating pressure:

1.5 - 8 bar (type 1/2": 0 - 8 bar)

Media:

oiled and unoiled filtered compressed air

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 749) atlas9_seiten/749.pdf
    Directional valves - Overview, function and explanation of 5/2-way valves
    Directional valves - Overview, function and explanation of 5/3-way valves
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
5/2-way and 5/3-way foot valves, Series FT:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
FT410S
5/2-way-foot valve, G 1/4" (venting G 1/8"), spring return
89,85€ incl. VAT
FT510S
5/2-way-foot valve, G 3/8" (venting G 1/4"), spring return
100,35€ incl. VAT
FT610S
5/2-way-foot valve, G 1/2", spring return
175,28€ incl. VAT
FT630S
5/3-way (centre position closed)-foot valve, G 1/2", spring return
202,67€ incl. VAT
FT640S
5/3-way (centre position vented)-foot valve, G 1/2", spring return
205,41€ incl. VAT
FT650S
5/3-way (centre position breathing)-foot valve, G 1/2", spring return
205,41€ incl. VAT
FT620D
5/2-way-foot valve, G 1/2", Detend
186,24€ incl. VAT
FT630D
5/3-way (centre position closed)-foot valve, G 1/2", Detend
213,61€ incl. VAT
FT640D
5/3-way (centre position vented)-foot valve, G 1/2", Detend
216,35€ incl. VAT
FT650D
5/3-way (centre position breathing)-foot valve, G 1/2", Detend
216,35€ incl. VAT
