Item group

5/2-way axial hand lever valves, model series VL

Materials:

Body and slider: aluminium, seals: NBR

Temperature range:

-5 to +60 °C

Operating pressure:

0 to 8 bar

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

Documents:

More information Less information
5/2-way axial hand lever valves, model series VL:
6 of 6 articles
5/2-way axial hand lever valve, spring return, G 1/8"(L 521-06 S)
L 521-06 S
5/2-way axial hand lever valve, spring return, G 1/8"
€57.45 incl. VAT
Immediately available

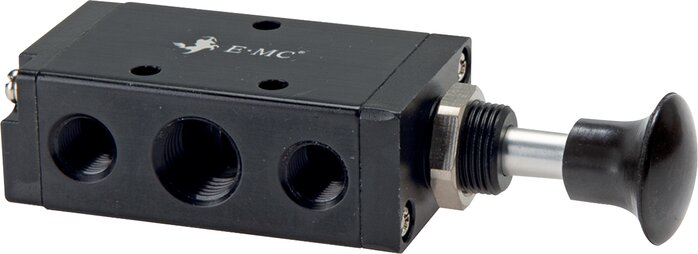

5/2-way axial hand lever valve, spring return, G 1/4"(L 522-08 S)
L 522-08 S
5/2-way axial hand lever valve, spring return, G 1/4"
€57.45 incl. VAT
Immediately available

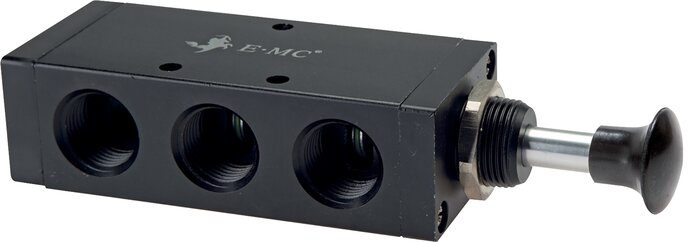

5/2-way axial hand lever valve, spring return, G 1/2"(L 524-15 S)
L 524-15 S
5/2-way axial hand lever valve, spring return, G 1/2"
€95.52 incl. VAT
Immediately available
5/2-way axial hand lever valve, Detend, G 1/8"(L 521-06)
L 521-06
5/2-way axial hand lever valve, Detend, G 1/8"
€52.72 incl. VAT
Immediately available
5/2-way axial hand lever valve, Detend, G 1/4"(L 522-08)
L 522-08
5/2-way axial hand lever valve, Detend, G 1/4"
€52.72 incl. VAT
Immediately available
5/2-way axial hand lever valve, Detend, G 1/2"(L 524-15)
L 524-15
5/2-way axial hand lever valve, Detend, G 1/2"
€87.62 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
