Item group

5/2-way button activated valves & rotary switch M5 (Ø 22.5), Series T 22

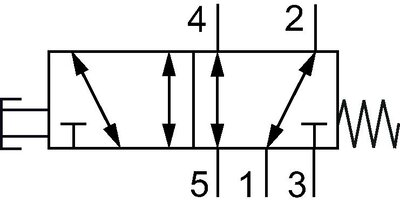

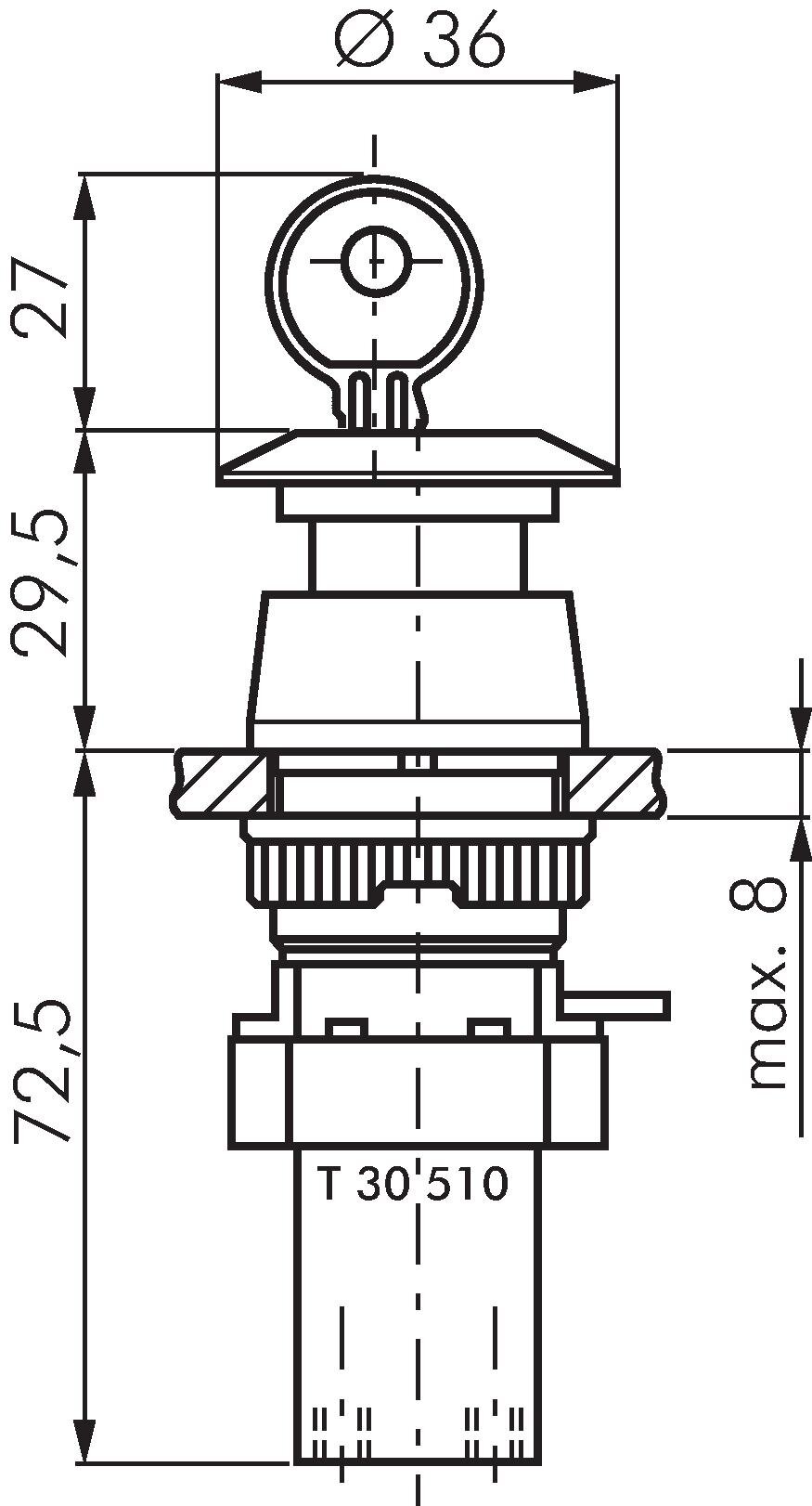

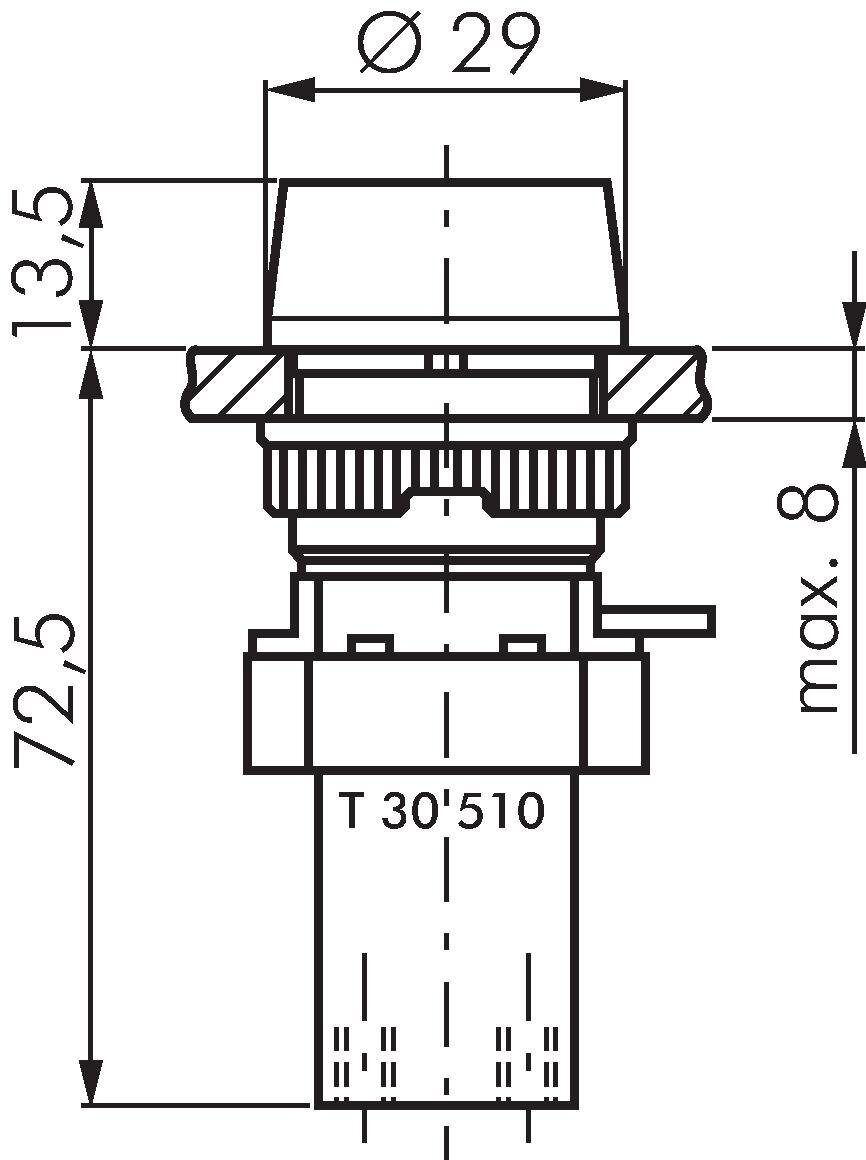

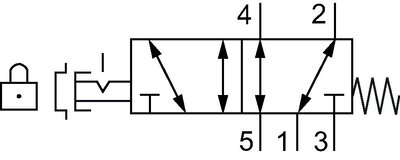

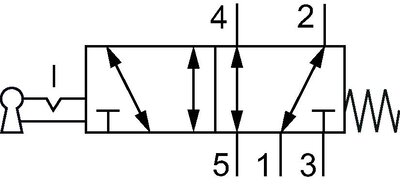

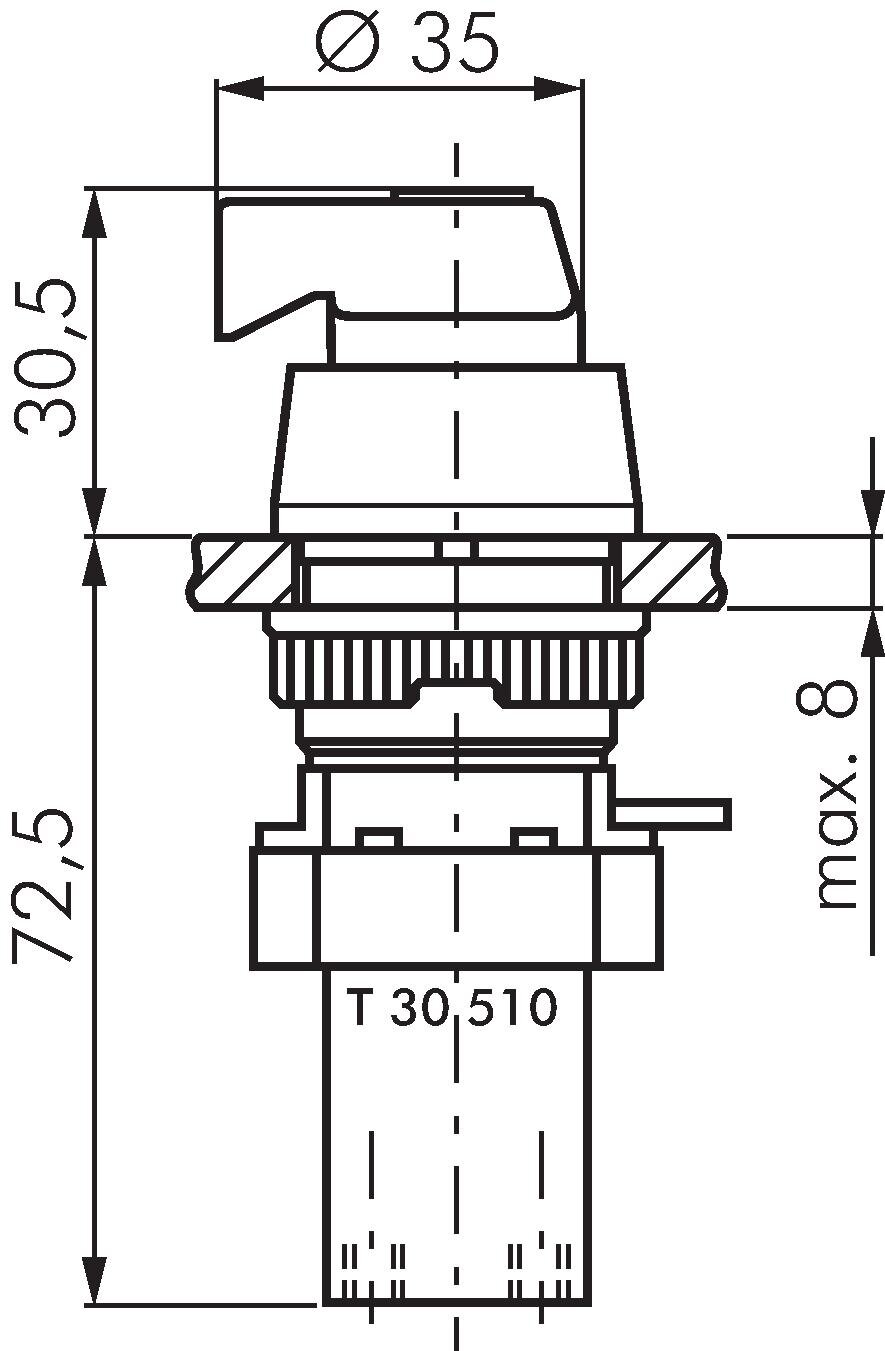

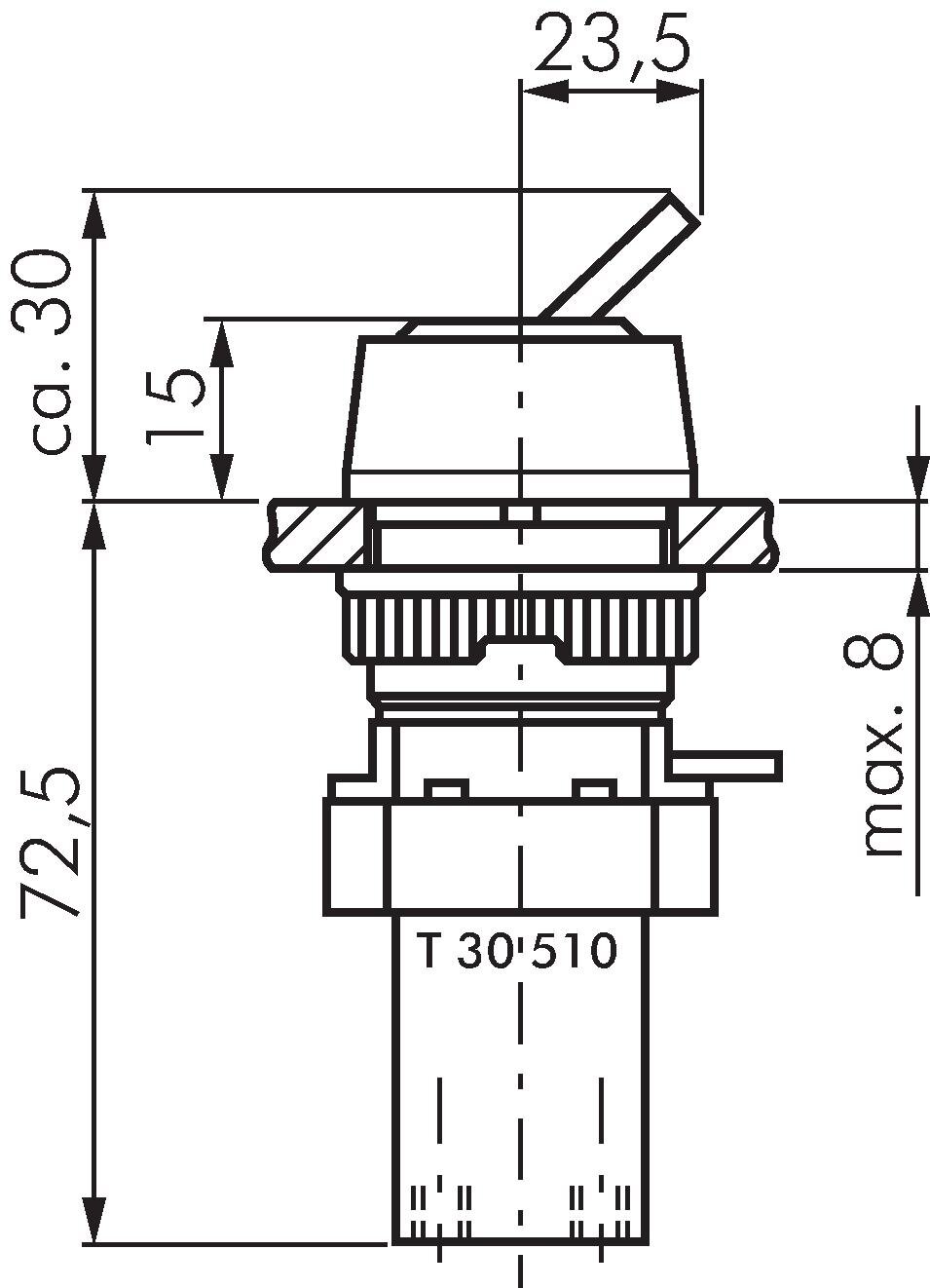

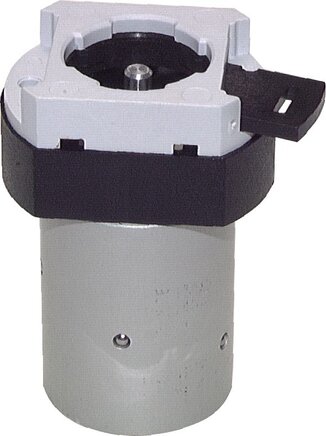

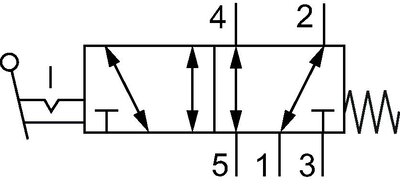

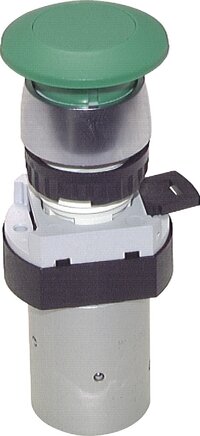

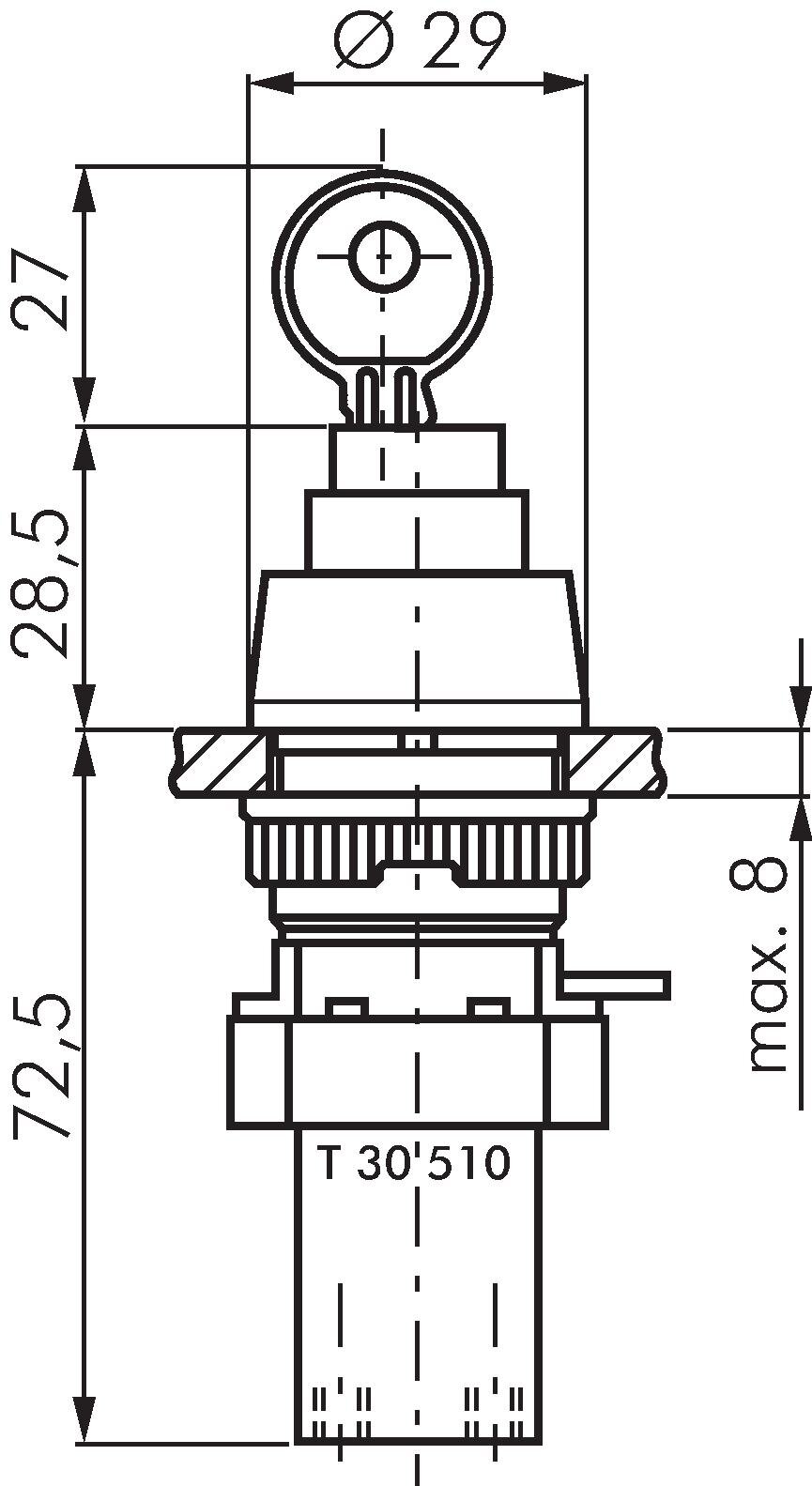

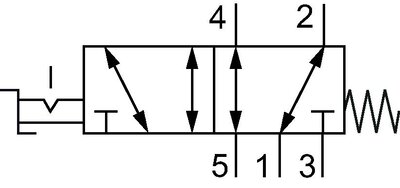

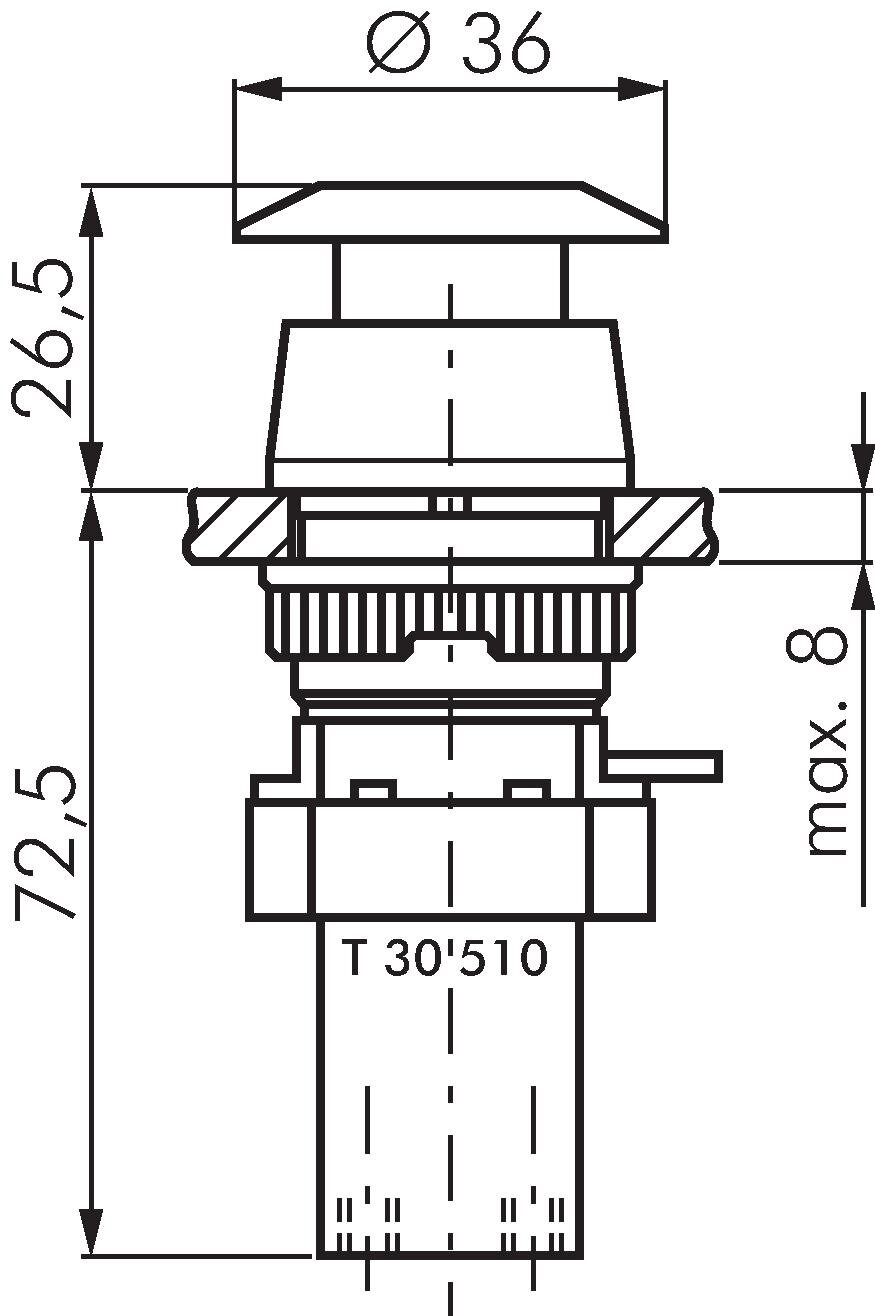

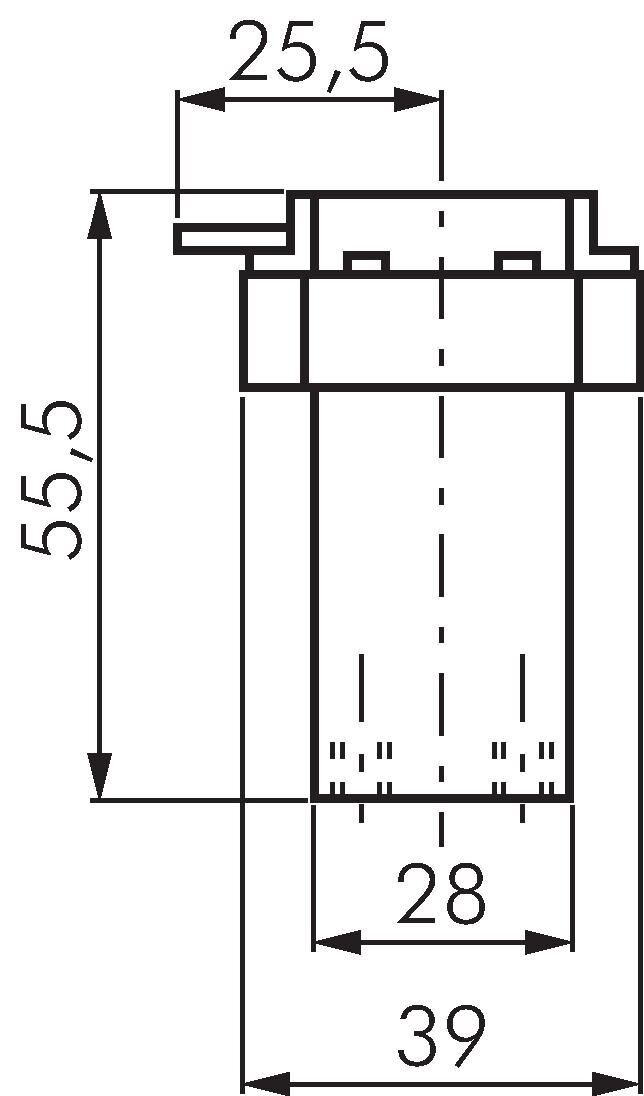

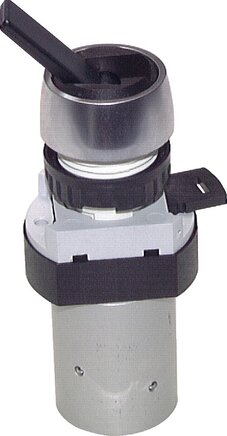

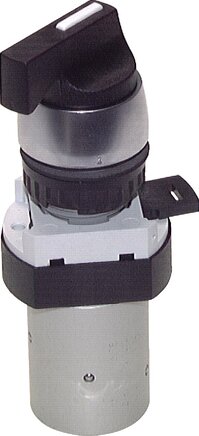

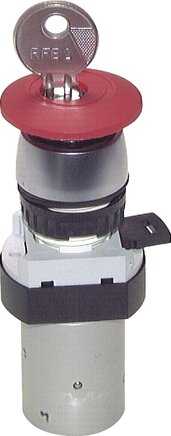

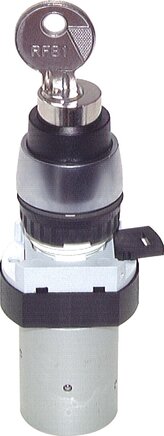

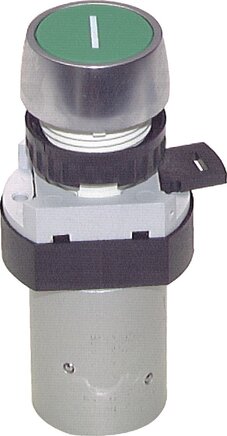

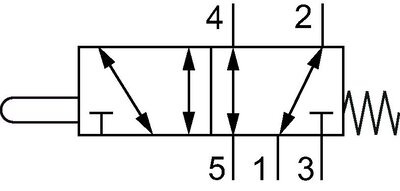

Exemplary representation: 5/2-way mushroom button valve Exemplary representation: 5/2-way base body Exemplary representation: 5/2-way pushbutton valve Exemplary representation: 5/2-way rotary switch valve Exemplary representation: 5/2-way key switch valve Exemplary representation: 5/2-way emergency stop button valve Exemplary representation: 5/2-way rocker valve Schematic symbol: 5/2-way base body Schematic symbol: 5/2-way pushbutton valve Schematic symbol: 5/2-way mushroom button valve Schematic symbol: 5/2-way rotary switch valve Schematic symbol: 5/2-way key switch valve Schematic symbol: 5/2-way emergency stop button valve Schematic symbol: 5/2-way rocker valve

Materials:

Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR / plastic

Temperature range:

-10°C to +70°C

Operating pressure:

0 to 12 bar

Flow:

100 l/min (nominal width 2,4 mm)

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

Switch panel borehole:

Ø 22,5 mm
*with a white circle (OUT), **with a white line (IN)

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 762) atlas9_seiten/762.pdf
    Directional valves - Overview, function and explanation of 5/2-way valves
