Item group

5/2-way hand lever valves, model series VH

{{ bildGross.Beschreibung }}

{{ bildGross.Beschreibung }}

{{ bildGross.Beschreibung }}

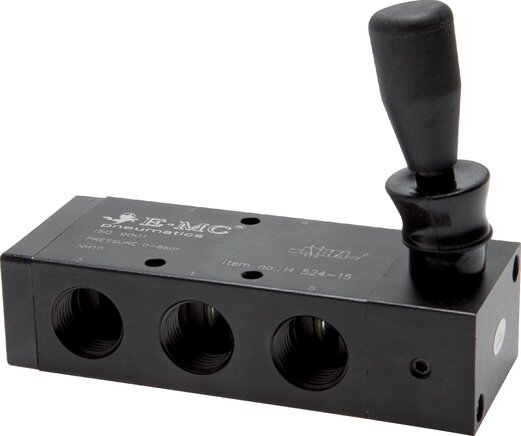

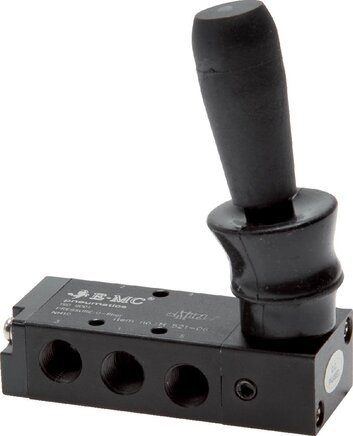

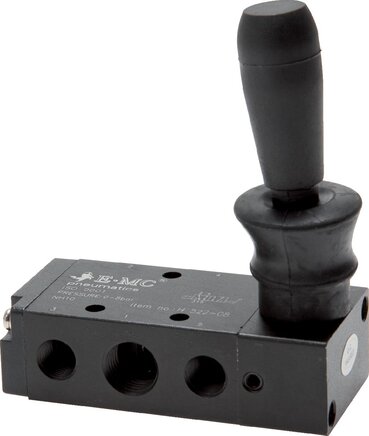

Exemplary representation

Exemplary representation

Exemplary representation

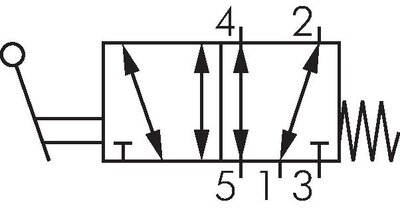

Schematic symbol: with spring return

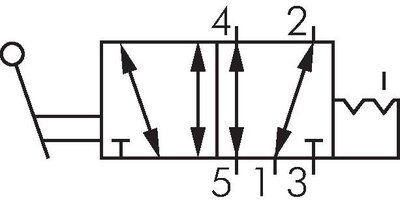

Schematic symbol: With detent

Materials:

Body and slider: aluminium, seals: NBR

Temperature range:

-5°C to +60°C

Operating pressure:

0 - 8 bar

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 726) atlas9_seiten/726.pdf
Directional valves - Overview, function and explanation of 5/2-way valves

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

5/2-way hand lever valves, model series VH:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

5/2-way hand lever valve, spring return, G 1/8"

67,22€ incl. VAT

function	Model series	Thread	flow [l/min]
spring return	VH10	G 1/8"	500

5/2-way hand lever valve, spring return, G 1/4" (exhaust G 1/8")

67,22€ incl. VAT

function	Model series	Thread	flow [l/min]
spring return	VH20	G 1/4" (exhaust G 1/8")	800

5/2-way hand lever valve, spring return, G 1/2"

112,32€ incl. VAT

function	Model series	Thread	flow [l/min]
spring return	VH40	G 1/2"	2.250

5/2-way hand lever valve, Detend, G 1/8"

58,48€ incl. VAT

function	Model series	Thread	flow [l/min]
Detend	VH10	G 1/8"	500

5/2-way hand lever valve, Detend, G 1/4" (exhaust G 1/8")

50,43€ incl. VAT

function	Model series	Thread	flow [l/min]
Detend	VH20	G 1/4" (exhaust G 1/8")	800

5/2-way hand lever valve, Detend, G 1/2"

98,10€ incl. VAT

function	Model series	Thread	flow [l/min]
Detend	VH40	G 1/2"	2.250
