Item group

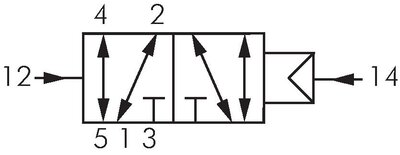

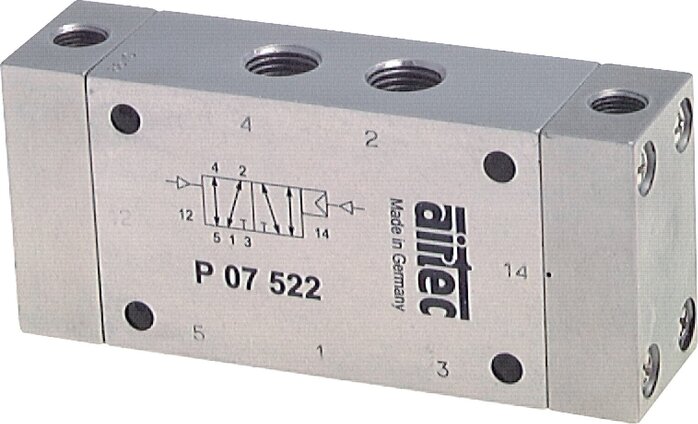

5/2-way pneumatic pulse valves with differential pistons, Series P
Materials:
Body: anodized aluminium, internal parts: aluminium and stainless steel, seals: plastic and NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Advantages:
•with this valve the pilot side 14 dominates due to a large piston area, so that the slide also switches at a signal of 12.
*available for vacuum applications on request
Documents:
More information
Filter items
more filters
5/2-way pneumatic pulse valves with differential pistons, Series P:
4 of 4 articles
€76.52
incl. VAT
€83.79
incl. VAT
€224.40
incl. VAT
€249.77
incl. VAT
Not in stock
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
