Item group

5/2-way pneumatic valves, Model series L

Materials:

Body: anodized aluminium, internal parts: aluminium and stainless steel, seals: plastic and NBR

Temperature range:

-10 to +70 °C

Media:

oiled and unoiled filtered compressed air

Pressure input:

Connection 1

Optional:

ATEX approval II 2GD c T5 T100°C, TMedium/Tamb: -10°C to max. +50°C -X

Documents:

More information Less information

Filter items

ORFS1 (zewn.)
Please select
ORFS2 (zewn.)
Please select
PN
Please select
5/2-way pneumatic valves, Model series L:
3 of 3 articles

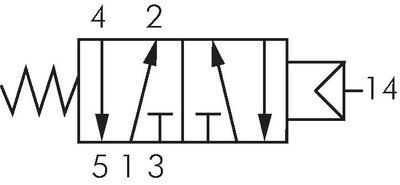

5/2-way pneumatic valve M 5, spring, Standard(L 25 511)
L 25 511
5/2-way pneumatic valve M 5, spring, Standard
€58.79 incl. VAT
Immediately available

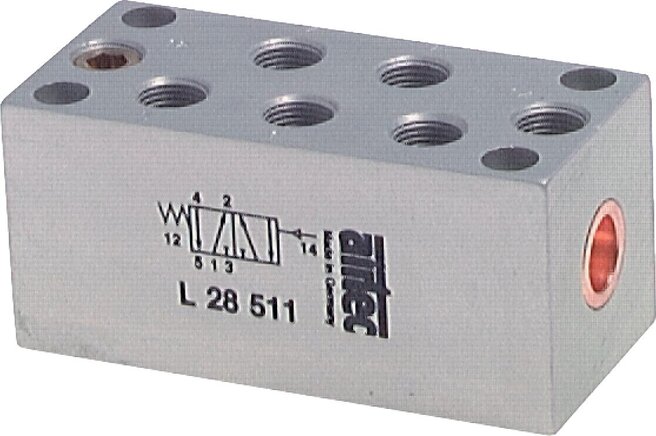

5/2-way pneumatic valve G 1/8", spring, Standard(L 28 511)
L 28 511
5/2-way pneumatic valve G 1/8", spring, Standard
€85.60 incl. VAT
Immediately available

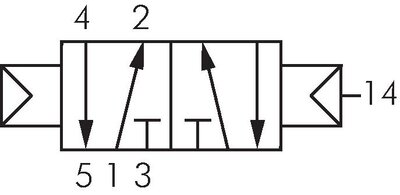

5/2-way pneumatic valve M 5, Pneumatic spring, ATEX approval(L 25 510-X)
L 25 510-X
5/2-way pneumatic valve M 5, Pneumatic spring, ATEX approval
€85.69 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
