Item group
5/2-way solenoid valves M5 , Series SF1000
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
Documents:
More information
5/2-way solenoid valves M5 , Series SF1000:
12 of 12 articles
SF1101 IPSC-D4
5/2-way solenoid valve, M 5, spring return, 24 V DC
€62.82
incl. VAT
SF1101 IPSC-A2
5/2-way solenoid valve, M 5, spring return, 230 V AC
€62.82
incl. VAT
SF1101 IPSC-D2
5/2-way solenoid valve, M 5, spring return, 12 V DC
€62.82
incl. VAT
SF1101 IPSC-A4
5/2-way solenoid valve, M 5, spring return, 24 V AC
€62.82
incl. VAT
SF1101 IPSC-A1
5/2-way solenoid valve, M 5, spring return, 115 V AC
€62.82
incl. VAT

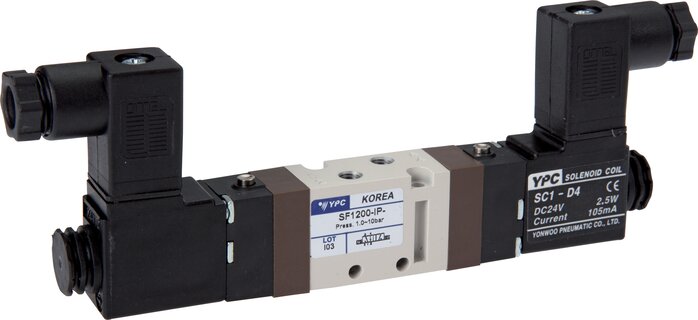

SF1200 IPSC-D4
5/2-way solenoid valve, M 5, pulse valve, 24 V DC
€100.29
incl. VAT
SF1200 IPSC-A2
5/2-way solenoid valve, M 5, pulse valve, 230 V AC
€100.29
incl. VAT
SF1200 IPSC-D2
5/2-way solenoid valve, M 5, pulse valve, 12 V DC
€100.29
incl. VAT
SF1200 IPSC-A4
5/2-way solenoid valve, M 5, pulse valve, 24 V AC
€100.29
incl. VAT
SF1200 IPSC-A1
5/2-way solenoid valve, M 5, pulse valve, 115 V AC
€100.29
incl. VAT
Not in stock

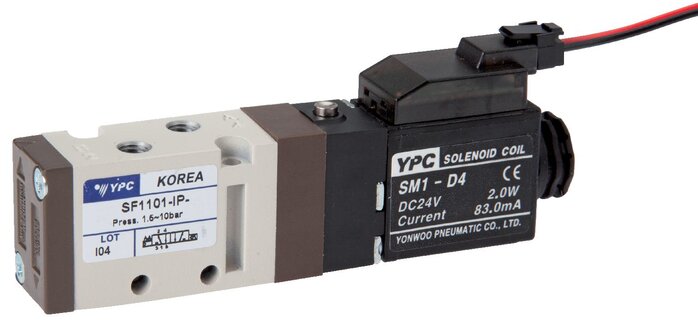

SF1101 IPSM-D4
5/2-way solenoid valve, M 5, spring return, 24 V DC
€76.60
incl. VAT

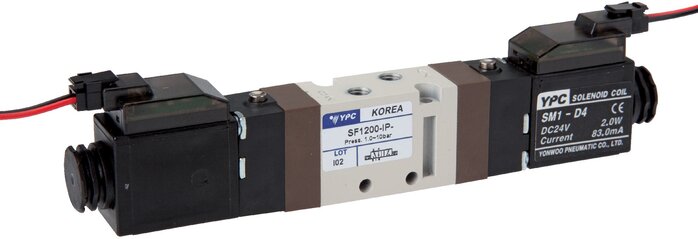

SF1200 IPSM-D4
5/2-way solenoid valve, M 5, pulse valve, 24 V DC
€119.84
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
