Item group

5/3-way hand lever valves, model series VH

Name: 5/3-way hand lever valve, G 1/8", Centre position closed, spring return of EMC
Brand: EMC
SKU: H 531-06 CS
Price: 87.62 EUR
Availability: InStock

Exemplary representation: 5/3-way hand lever valve G 1/4"

Exemplary representation: 5/3-way hand lever valve G 1/8"

Exemplary representation: 5/3-way hand lever valve G 1/2"

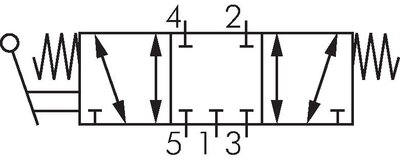

Schematic symbol: 5/3-way hand lever valve with spring return (middle position closed)

Schematic symbol: 5/3-way hand lever valve with detent (middle position closed)

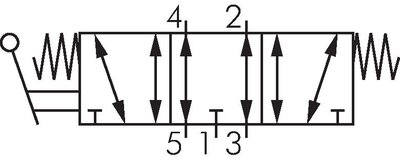

Schematic symbol: 5/3-way hand lever valve with spring return (middle position deaerates)

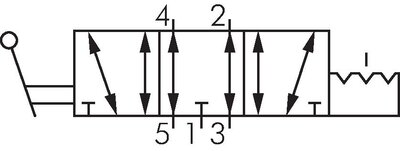

Schematic symbol: 5/3-way hand lever valve with detent (middle position deaerates)

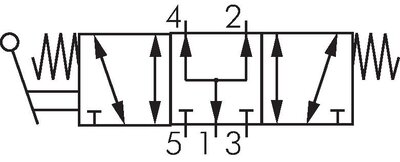

Schematic symbol: 5/3-way hand lever valve with spring return (middle position ventilates)

Schematic symbol: 5/3-way hand lever valve with detent (middle position ventilates)

Materials:

Body and slider: aluminium, seals: NBR

Temperature range:

-5 to +60 °C

Operating pressure:

0 to 8 bar

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 726_726a) atlas9_seiten/726_726a.pdf

5/3-way hand lever valves, model series VH:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

H 531-06 CS

5/3-way hand lever valve, G 1/8", Centre position closed, spring return

87,62€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position closed, spring return	G 1/8"	G 1/8"	3,4

H 532-08 CS

5/3-way hand lever valve, G 1/4", Centre position closed, spring return

87,62€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position closed, spring return	G 1/4"	G 1/8"	3,9

H 534-15 CS

5/3-way hand lever valve, G 1/2", Centre position closed, spring return

114,05€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position closed, spring return	G 1/2"	G 1/2"	6,2

H 531-06 C

5/3-way hand lever valve, G 1/8", Centre position closed, detend

80,15€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position closed, detend	G 1/8"	G 1/8"	3,4

H 532-08 C

5/3-way hand lever valve, G 1/4", Centre position closed, detend

80,15€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position closed, detend	G 1/4"	G 1/8"	3,9

H 534-15 C

5/3-way hand lever valve, G 1/2", Centre position closed, detend

114,05€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position closed, detend	G 1/2"	G 1/2"	6,2

H 531-06 ES

5/3-way hand lever valve, G 1/8", Centre position vented, spring return

87,62€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position vented, spring return	G 1/8"	G 1/8"	3,4

H 532-08 ES

5/3-way hand lever valve, G 1/4", Centre position vented, spring return

87,62€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position vented, spring return	G 1/4"	G 1/8"	3,9

H 534-15 ES

5/3-way hand lever valve, G 1/2", Centre position vented, spring return

114,05€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position vented, spring return	G 1/2"	G 1/2"	6,2

H 531-06 E

5/3-way hand lever valve, G 1/8", Centre position vented, detend

80,15€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position vented, detend	G 1/8"	G 1/8"	3,4

H 532-08 E

5/3-way hand lever valve, G 1/4", Centre position vented, detend

80,15€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position vented, detend	G 1/4"	G 1/8"	3,9

H 534-15 E

5/3-way hand lever valve, G 1/2", Centre position vented, detend

114,05€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position vented, detend	G 1/2"	G 1/2"	6,2

H 531-06 PS

5/3-way hand lever valve, G 1/8", Centre position ventilated, spring return

87,62€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position ventilated, spring return	G 1/8"	G 1/8"	3,4

H 532-08 PS

5/3-way hand lever valve, G 1/4", Centre position ventilated, spring return

87,62€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position ventilated, spring return	G 1/4"	G 1/8"	3,9

H 534-15 PS

5/3-way hand lever valve, G 1/2", Centre position ventilated, spring return

114,05€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position ventilated, spring return	G 1/2"	G 1/2"	6,2

H 531-06 P

5/3-way hand lever valve, G 1/8", Centre position ventilated, detend

80,15€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position ventilated, detend	G 1/8"	G 1/8"	3,4

H 532-08 P

5/3-way hand lever valve, G 1/4", Centre position ventilated, detend

80,15€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position ventilated, detend	G 1/4"	G 1/8"	3,9

H 534-15 P

5/3-way hand lever valve, G 1/2", Centre position ventilated, detend

114,05€ incl. VAT

function	Thread G1 (3x)	Thread exhaust air G2 (2x)	Nominal width [mm]
Centre position ventilated, detend	G 1/2"	G 1/2"	6,2
