Item group

5/3-way solenoid valves G 1/8", Series SF2000

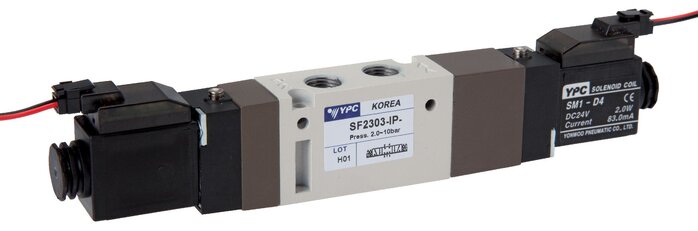

Name: 5/3-way solenoid valve, G 1/8", Centre position closed, 24 V DC of YPC
Brand: YPC
SKU: SF2303 IPSC-D4
Price: 150.95 EUR
Availability: InStock

Voorbeeldig Afbeelding: 5/3-weg magneetventiel met standaard stekker

YouTube videos:

Wegventielen – overzicht en werking van en toelichting bij 5/3-weg ventielen

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10 to +60 °C

Media:

oiled and unoiled filtered compressed air

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Information:

These valves are always supplied with a solenoid coil and a connector plug.

Switching time (at 5 bar):

< 35 ms

Protection class:

IP 65 (with rectangular plug SY100: IP 40)

Structural shape solenoid coil:

Documents:

More information

5/3-way solenoid valves G 1/8", Series SF2000:

18 of 18 articles

SF2303 IPSC-D4

5/3-way solenoid valve, G 1/8", Centre position closed, 24 V DC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
24 V DC	Standard plug (size 0)	Centre position closed	G 1/8"

SF2303 IPSC-A2

5/3-way solenoid valve, G 1/8", Centre position closed, 230 V AC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
230 V AC	Standard plug (size 0)	Centre position closed	G 1/8"

SF2303 IPSC-D2

5/3-way solenoid valve, G 1/8", Centre position closed, 12 V DC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
12 V DC	Standard plug (size 0)	Centre position closed	G 1/8"

SF2303 IPSC-A4

5/3-way solenoid valve, G 1/8", Centre position closed, 24 V AC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
24 V AC	Standard plug (size 0)	Centre position closed	G 1/8"

SF2303 IPSC-A1

5/3-way solenoid valve, G 1/8", Centre position closed, 115 V AC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
115 V AC	Standard plug (size 0)	Centre position closed	G 1/8"

SF2403 IPSC-D4

5/3-way solenoid valve, G 1/8", Centre position vented, 24 V DC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
24 V DC	Standard plug (size 0)	Centre position vented	G 1/8"

SF2403 IPSC-A2

5/3-way solenoid valve, G 1/8", Centre position vented, 230 V AC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
230 V AC	Standard plug (size 0)	Centre position vented	G 1/8"

SF2403 IPSC-D2

5/3-way solenoid valve, G 1/8", Centre position vented, 12 V DC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
12 V DC	Standard plug (size 0)	Centre position vented	G 1/8"

SF2403 IPSC-A4

5/3-way solenoid valve, G 1/8", Centre position vented, 24 V AC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
24 V AC	Standard plug (size 0)	Centre position vented	G 1/8"

SF2403 IPSC-A1

5/3-way solenoid valve, G 1/8", Centre position vented, 115 V AC

€150.95 incl. VAT

Quantity

pcs

Not in stock

Control voltage	Version	function	Thread (3x)
115 V AC	Standard plug (size 0)	Centre position vented	G 1/8"

SF2503 IPSC-D4

5/3-way solenoid valve, G 1/8", Centre position breathing, 24 V DC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
24 V DC	Standard plug (size 0)	Centre position breathing	G 1/8"

SF2503 IPSC-A2

5/3-way solenoid valve, G 1/8", Centre position breathing, 230 V AC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
230 V AC	Standard plug (size 0)	Centre position breathing	G 1/8"

SF2503 IPSC-D2

5/3-way solenoid valve, G 1/8", Centre position breathing, 12 V DC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
12 V DC	Standard plug (size 0)	Centre position breathing	G 1/8"

SF2503 IPSC-A4

5/3-way solenoid valve, G 1/8", Centre position breathing, 24 V AC

€150.95 incl. VAT

Quantity

pcs

Immediately available

Control voltage	Version	function	Thread (3x)
24 V AC	Standard plug (size 0)	Centre position breathing	G 1/8"

SF2503 IPSC-A1

5/3-way solenoid valve, G 1/8", Centre position breathing, 115 V AC

€150.95 incl. VAT

Quantity

pcs

Not in stock

Control voltage	Version	function	Thread (3x)
115 V AC	Standard plug (size 0)	Centre position breathing	G 1/8"

SF2303 IPSM-D4

5/3-way solenoid valve, G 1/8", Centre position closed, 24 V DC

€161.41 incl. VAT

Quantity

pcs

Immediately available

Control voltage	function	Thread (3x)	Thread exhaust air (2x)
24 V DC	Centre position closed	G 1/8"	G 1/8"

Version

2-pin plug with LED and protection circuit, including 600 mm cable

SF2403 IPSM-D4

5/3-way solenoid valve, G 1/8", Centre position vented, 24 V DC

€176.31 incl. VAT

Quantity

pcs

Immediately available

Control voltage	function	Thread (3x)	Thread exhaust air (2x)
24 V DC	Centre position vented	G 1/8"	G 1/8"

Version

2-pin plug with LED and protection circuit, including 600 mm cable

SF2503 IPSM-D4

5/3-way solenoid valve, G 1/8", Centre position breathing, 24 V DC

€176.31 incl. VAT

Quantity

pcs

Not in stock

Control voltage	function	Thread (3x)	Thread exhaust air (2x)
24 V DC	Centre position breathing	G 1/8"	G 1/8"

Version

2-pin plug with LED and protection circuit, including 600 mm cable

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.

Original parts from:
