Item group

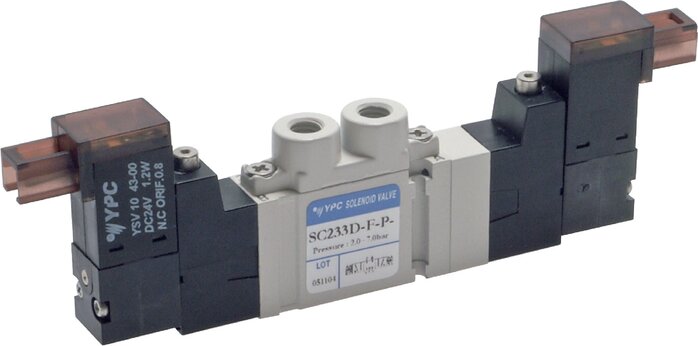

5/3-way solenoid valves M 5, Series SC200 (will be discontinued)
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 30 ms
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
1,2 W
Protection class:
IP 50
Version:
with 2-pole connector, and LED (including 600 mm cable, 7 mm plug width)
Documents:
More information
5/3-way solenoid valves M 5, Series SC200 (will be discontinued):
3 of 3 articles
SC233DF PL-D4
5/3-way solenoid valve, M 5, closed, 24 V=
€133.54
incl. VAT
SC243DF PL-D4
5/3-way solenoid valve, M 5, vented, 24 V=
€136.10
incl. VAT
SC253DF PL-D4
5/3-way solenoid valve, M 5, ventilated, 24 V=
€136.10
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
