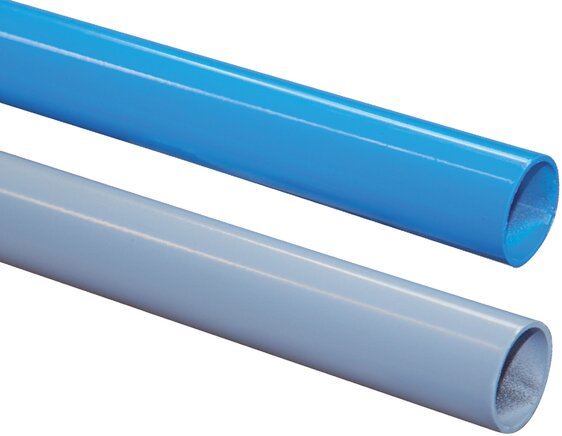

Aluminium pipes for push in connectors, TPR ... ALU

Description

Materials:
Aluminum, inside and outside chromated, outside powder coated

Temperature range:
-20°C bis +80°C

Media:
Compressed air, vacuum

Pipe length:
4 m

Note:
The tube must be cleanly separated, the exterior deburred and given a slight chamfer. Optimal results are achieved by using a tube cutter.

Warning:
When ordering, please state shipping length! Packaging service: max 2 m, overnight express: max. 3 m, freight: max 6m

Find the right item

Tube Ø outer x inner [mm]
colour

Aluminium pipes for push in connectors, TPR ... ALU: 10 of 10 items

TPR 15X12 ALU BLAU
Aluminium tube, 15 x 12mm, blue (RAL 5015) powder coated (TPR 15X12 ALU BLAU)

blue (RAL 5015) blue (RAL 5015)

Aluminium tube, 15 x 12mm, blue (RAL 5015) powder coated
  • Tube Ø outer x inner [mm]

    15 x 12

  • Operating pressure [bar]

    20

Immediately available

8,57 €

TPR 18X15 ALU BLAU
Aluminium tube, 18 x 15mm, blue (RAL 5015) powder coated (TPR 18X15 ALU BLAU)

blue (RAL 5015) blue (RAL 5015)

Aluminium tube, 18 x 15mm, blue (RAL 5015) powder coated
  • Tube Ø outer x inner [mm]

    18 x 15

  • Operating pressure [bar]

    20

Immediately available

10,57 €

TPR 22X19 ALU BLAU
Aluminium tube, 22 x 19mm, blue (RAL 5015) powder coated (TPR 22X19 ALU BLAU)

blue (RAL 5015) blue (RAL 5015)

Aluminium tube, 22 x 19mm, blue (RAL 5015) powder coated
  • Tube Ø outer x inner [mm]

    22 x 19

  • Operating pressure [bar]

    20

Immediately available

10,83 €

TPR 28X25 ALU BLAU
Aluminium tube, 28 x 25mm, blue (RAL 5015) powder coated (TPR 28X25 ALU BLAU)

blue (RAL 5015) blue (RAL 5015)

Aluminium tube, 28 x 25mm, blue (RAL 5015) powder coated
  • Tube Ø outer x inner [mm]

    28 x 25

  • Operating pressure [bar]

    20

Immediately available

16,56 €

TPR 32X29 ALU BLAU
Aluminium tube, 32 x 29mm, blue (RAL 5015) powder coated (TPR 32X29 ALU BLAU)

blue (RAL 5015) blue (RAL 5015)

Aluminium tube, 32 x 29mm, blue (RAL 5015) powder coated
  • Tube Ø outer x inner [mm]

    32 x 29

  • Operating pressure [bar]

    20

Immediately available

23,82 €

TPR 15X12 ALU GRAU
Aluminium tube, 15 x 12mm, grey (RAL 7001) powder coated (TPR 15X12 ALU GRAU)

grey (RAL 7001) grey (RAL 7001)

Aluminium tube, 15 x 12mm, grey (RAL 7001) powder coated
  • Tube Ø outer x inner [mm]

    15 x 12

  • Operating pressure [bar]

    20

Immediately available

8,57 €

TPR 18X15 ALU GRAU
Aluminium tube, 18 x 15mm, grey (RAL 7001) powder coated (TPR 18X15 ALU GRAU)

grey (RAL 7001) grey (RAL 7001)

Aluminium tube, 18 x 15mm, grey (RAL 7001) powder coated
  • Tube Ø outer x inner [mm]

    18 x 15

  • Operating pressure [bar]

    20

Immediately available

10,57 €

TPR 22X19 ALU GRAU
Aluminium tube, 22 x 19mm, grey (RAL 7001) powder coated (TPR 22X19 ALU GRAU)

grey (RAL 7001) grey (RAL 7001)

Aluminium tube, 22 x 19mm, grey (RAL 7001) powder coated
  • Tube Ø outer x inner [mm]

    22 x 19

  • Operating pressure [bar]

    20

Immediately available

10,83 €

TPR 28X25 ALU GRAU
Aluminium tube, 28 x 25mm, grey (RAL 7001) powder coated (TPR 28X25 ALU GRAU)

grey (RAL 7001) grey (RAL 7001)

Aluminium tube, 28 x 25mm, grey (RAL 7001) powder coated
  • Tube Ø outer x inner [mm]

    28 x 25

  • Operating pressure [bar]

    20

Immediately available

16,56 €

TPR 32X29 ALU GRAU
Aluminium tube, 32 x 29mm, grey (RAL 7001) powder coated (TPR 32X29 ALU GRAU)

grey (RAL 7001) grey (RAL 7001)

Aluminium tube, 32 x 29mm, grey (RAL 7001) powder coated
  • Tube Ø outer x inner [mm]

    32 x 29

  • Operating pressure [bar]

    20

Immediately available

23,82 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
