Item group

Backwash filters with pressure reducer for drinking water, PN 16

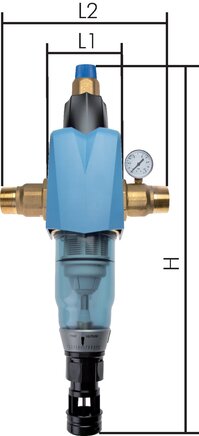

Exemplary representation: Rückspülfilter/Druckminderer f. Trinkwasser, R 3/4" bis R 1 1/4" Exemplary representation: Rückspülfilter/Druckminderer f. Trinkwasser, R 1 1/2" & R 2"

Version:

Combined station for pressure control and filtration (DVGW component-tested) of drinking and process water as well as chemical-free cooling water of once-through cooling systems (no circulating water). Protects the pipelines and the system parts connected to them from malfunctions and corrosion damage caused by foreign particles carried in the water, such as rust particles, chips, sand, hemp, etc. The filter element is cleaned by manual backwashing (flushing out the dirt particles) at regular intervals. The rinsed out dirt and the rinsing water can be discharged via a hose or HT pipe.

Materials:

Body: brass, sieve bowl: clear special plastic, spring hood: plastic with adjustment scale for setpoint pressure

Temperature range:

+5°C to +40°C (medium +5°C to +30°C)

Input pressure:

2 to 16 bar

Pressure gauge connection:

G 1/4"

Pore width in the filter:

90 µm

Rinse water connection:

13 mm hose screw connection or HT tube Ø 50 mm

Media:

Drinking and industrial water as well as chemical-free water for the most diverse industrial applications (no circulation water)

Approvals:

R 3/4" bis R 1-1/4": DIN DVGW Baumusterprüfung (Prüfgrundlagen DIN DVGW Baumusterprüfung: DIN 19628, DIN EN 13443-1, UBA BWGL-Metalle, UBA Elastomer, UBA Übergangsregelung KTW BWGL, DVGW W 270)
*with Delta p = 0.2 bar, **included in the supply volume

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 625) atlas9_seiten/625.pdf
    Documentation doku/fwr.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
