Item group

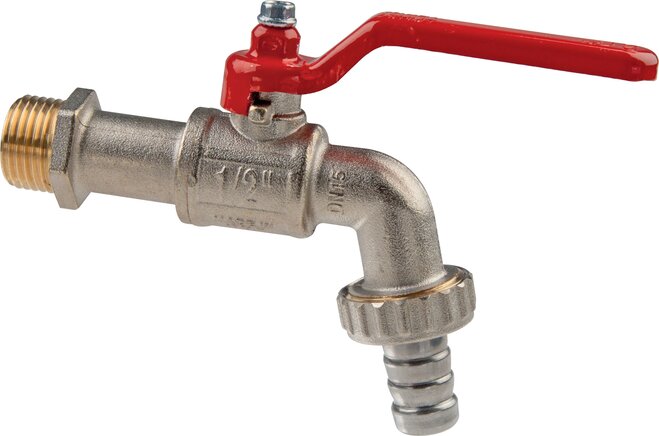

Ball drain valve, up to 15 bar

Materials:

Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / NBR

Temperature range:

-20 to +80 °C

Media:

Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)

Advantages:

•By purchasing the optional combi handles, you can construct various handle variations: -Standard handle in red, yellow, blue and black, -Butterfly handle in red, yellow, blue, black and green, -Flat steel handle in red, yellow and green (optional: lockable), -Long handle in red

Documents:

More information Less information

Filter items

Diametro pistone [mm]
Please select
Corsa [mm]
Please select
Esecuzione
Please select
H (filettatura interna biella)
Please select
more filters
Ball drain valve, up to 15 bar:
4 of 4 articles
Brass ball drain valve G 3/8" (13 (1/2")mm nozzle), -0,9 to 15bar(KHA 38)
KHA 38
Brass ball drain valve G 3/8" (13 (1/2")mm nozzle), -0,9 to 15bar
€18.92 incl. VAT
Immediately available
Brass ball drain valve G 1/2" (13 (1/2")mm nozzle), -0,9 to 15bar(KHA 12)
KHA 12
Brass ball drain valve G 1/2" (13 (1/2")mm nozzle), -0,9 to 15bar
€22.18 incl. VAT
Immediately available
Brass ball drain valve G 3/4" (19 (3/4")mm nozzle), -0,9 to 15bar(KHA 34)
KHA 34
Brass ball drain valve G 3/4" (19 (3/4")mm nozzle), -0,9 to 15bar
€30.54 incl. VAT
Immediately available
Brass ball drain valve G 1" (25 (1")mm nozzle), -0,9 to 12bar(KHA 10)
KHA 10
Brass ball drain valve G 1" (25 (1")mm nozzle), -0,9 to 12bar
€42.52 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
