Item group

Ball valves 2-piece, with spring return, up to 65 bar

Materials:

Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / FKM, spring: 1.4310, handle: galvanised steel, manufactured silicone-free

Temperature range:

-20 to +170 °C (dependent on operating pressure), fuels -20°C up to max. +60°C

Media:

Water, compressed air, vacuum (max. -0.98 bar), oils, fuels (5 bar max.), heating oil

Function:

The basic setting the ball valve is in the closed position. It is opened against the spring force. When releasing the handle it jumps into the "Close" position. Closing should be supported manually (no quick shut-off valve).

Advantages:

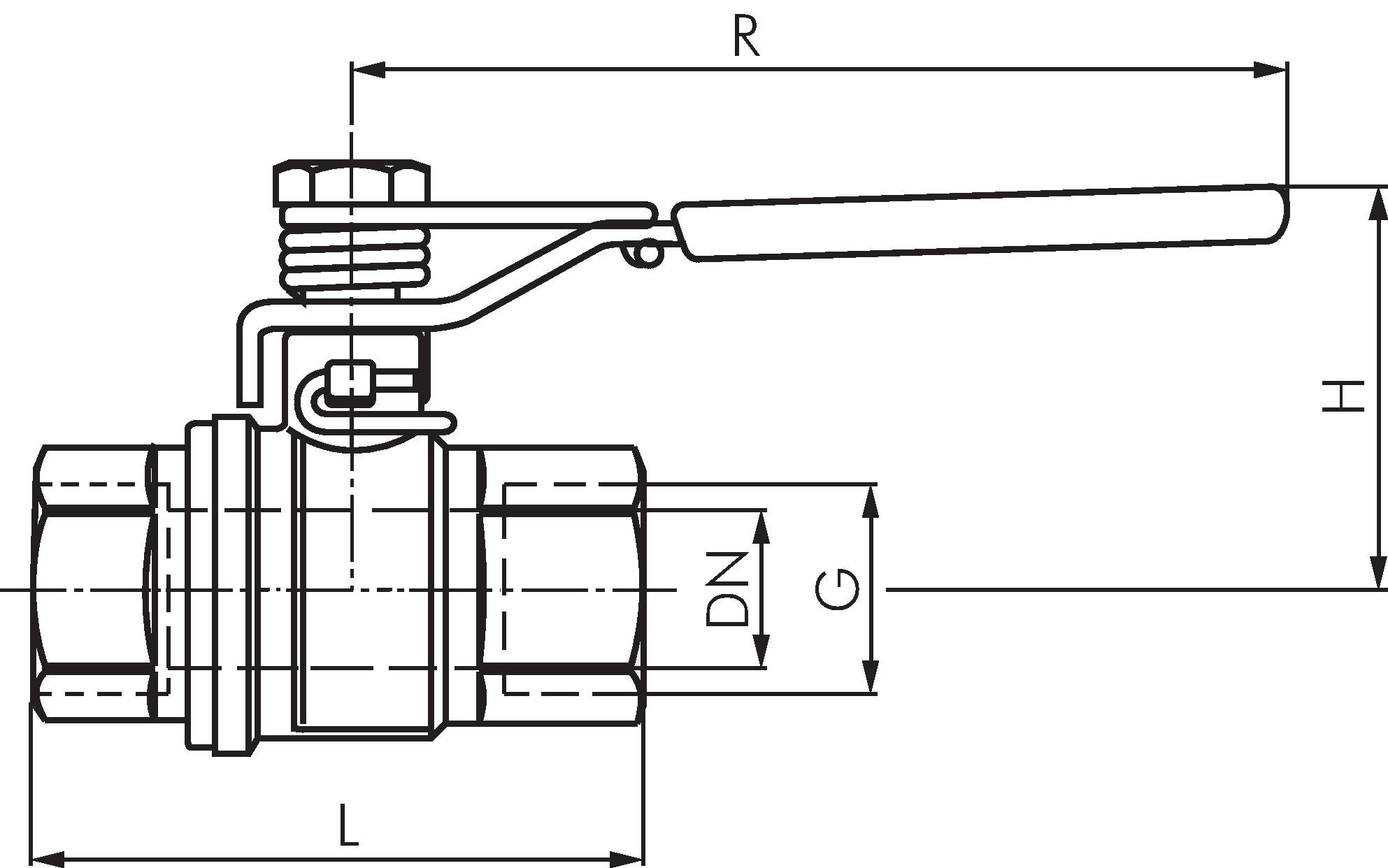

•Length according to DIN 3202-M3

Documents:

More information Less information

Filter items

Control voltage
Please select
function
Please select
Ball valves 2-piece, with spring return, up to 65 bar:
8 of 8 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
