Item group

Ball valves with venting - Futura, up to 30000 l/min

Materials:

Body: PA 66 GF60, cover: POM, seals: NBR

Temperature range:

-10 to +50 °C

Media:

Oiled and unoiled compressed air, neutral gasses

Advantages:

•easy assembly of single components within a model series using coupling kits

Input pressure:

0 - 16 bar (model series 0: 0 - 12 bar)

Function:

3/2way shut-off valve with captured exhaust air. In a closed state, it can be locked using a padlock VHS 20.

Scope of delivery:

Ball valve including silencer in exhaust thread

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 0)

Documents:

More information Less information
Ball valves with venting - Futura, up to 30000 l/min:
7 of 7 articles
FUTURA ball valve G 1/4", Futura 0(K 014 F)
K 014 F
FUTURA ball valve G 1/4", Futura 0
€34.99 incl. VAT
Immediately available

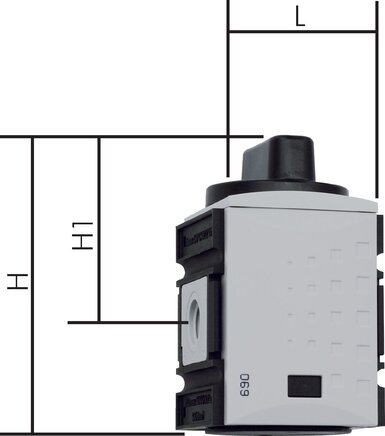

FUTURA ball valve G 1/4", Futura 1(K 14 F)
K 14 F
FUTURA ball valve G 1/4", Futura 1
€47.48 incl. VAT
Immediately available
FUTURA ball valve G 3/8", Futura 1(K 38 F)
K 38 F
FUTURA ball valve G 3/8", Futura 1
€47.48 incl. VAT
Immediately available
FUTURA ball valve G 3/8", Futura 2(K 382 F)
K 382 F
FUTURA ball valve G 3/8", Futura 2
€69.98 incl. VAT
Immediately available
FUTURA ball valve G 1/2", Futura 2(K 12 F)
K 12 F
FUTURA ball valve G 1/2", Futura 2
€69.98 incl. VAT
Immediately available

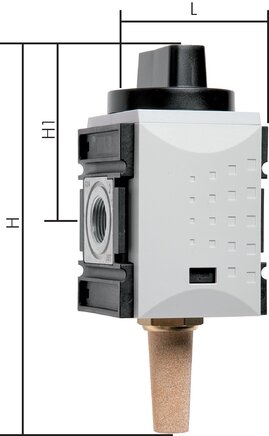

FUTURA ball valve G 3/4", Futura 4(K 34 F)
K 34 F
FUTURA ball valve G 3/4", Futura 4
€157.85 incl. VAT
Immediately available
FUTURA ball valve G 1", Futura 4(K 10 F)
K 10 F
FUTURA ball valve G 1", Futura 4
€157.85 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
